Brake Fastener Torque

BRAKE FASTENER TORQUE

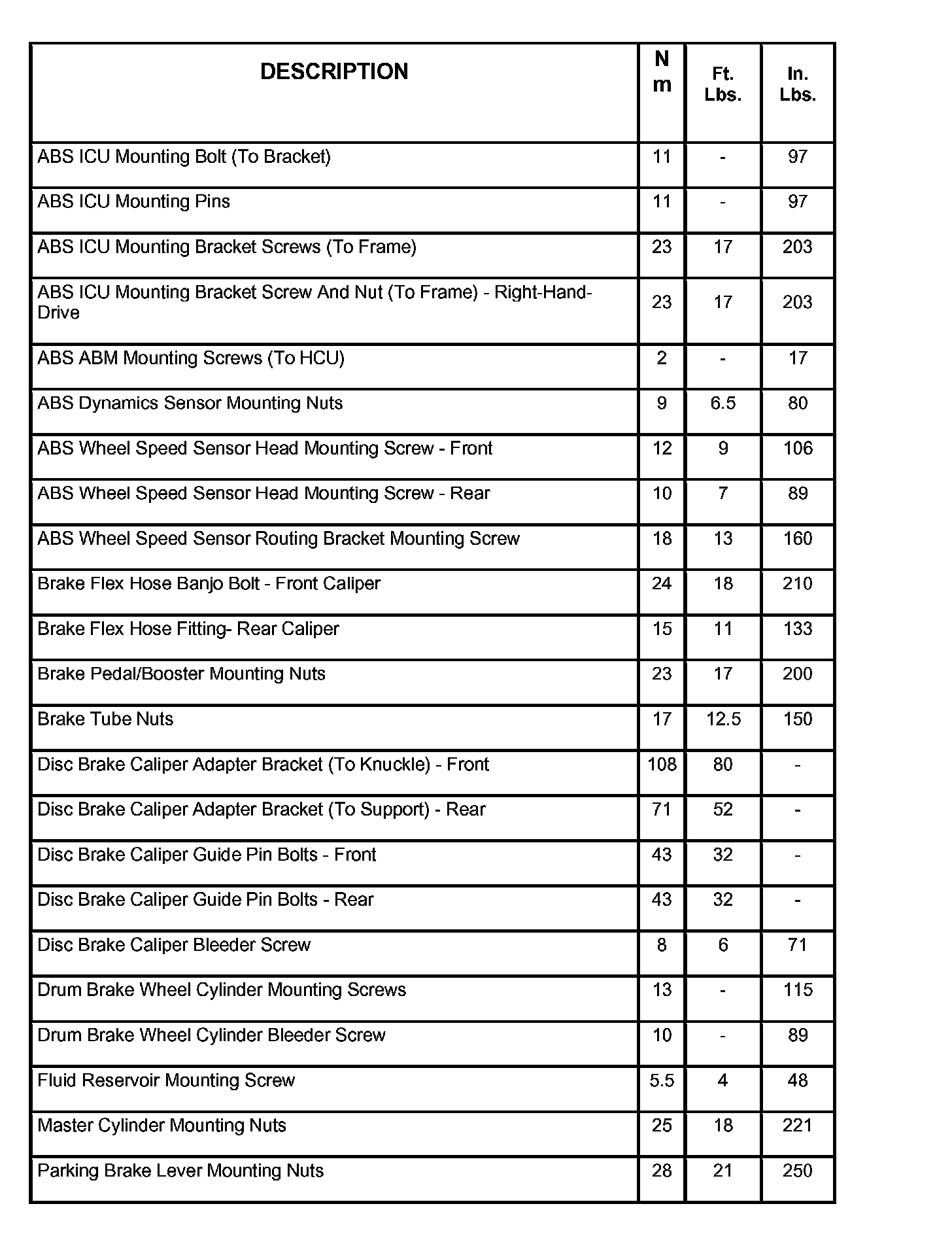

BRAKE FASTENER TORQUE (Part 1):

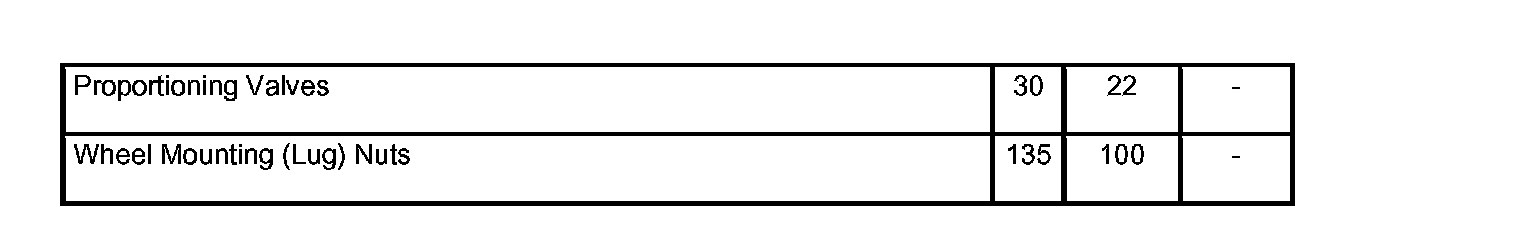

BRAKE FASTENER TORQUE (Part 2):
