Connector Views

Component ID: 345

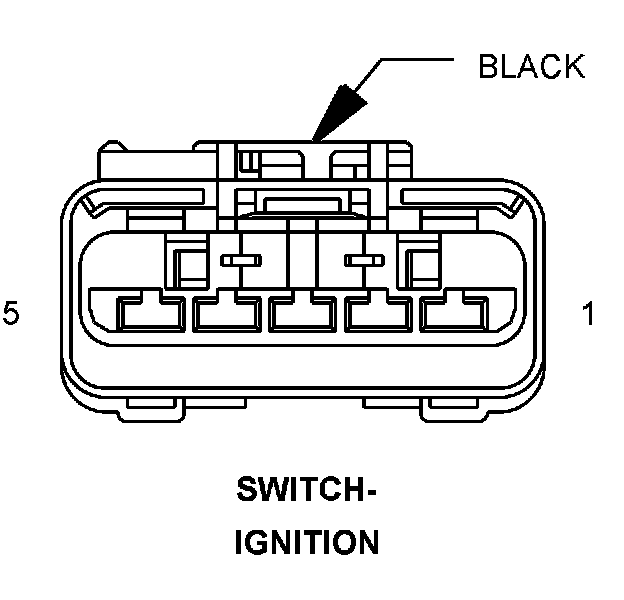

Component : SWITCH-IGNITION

Connector:
Name : SWITCH-IGNITION
Color : BLACK
# of pins : 5




Pin Description Circuit
1 GROUND Z937 20BK/YL
2 IGNITION SWITCH SENSE G20 20VT/BR
3 IGNITION SWITCH OUTPUT (RUN-START) F20 20PK/WT
4 IGNITION SWITCH OUTPUT (START) F961 20PK/LB
5 FUSED B(+) A952 20RD/OR

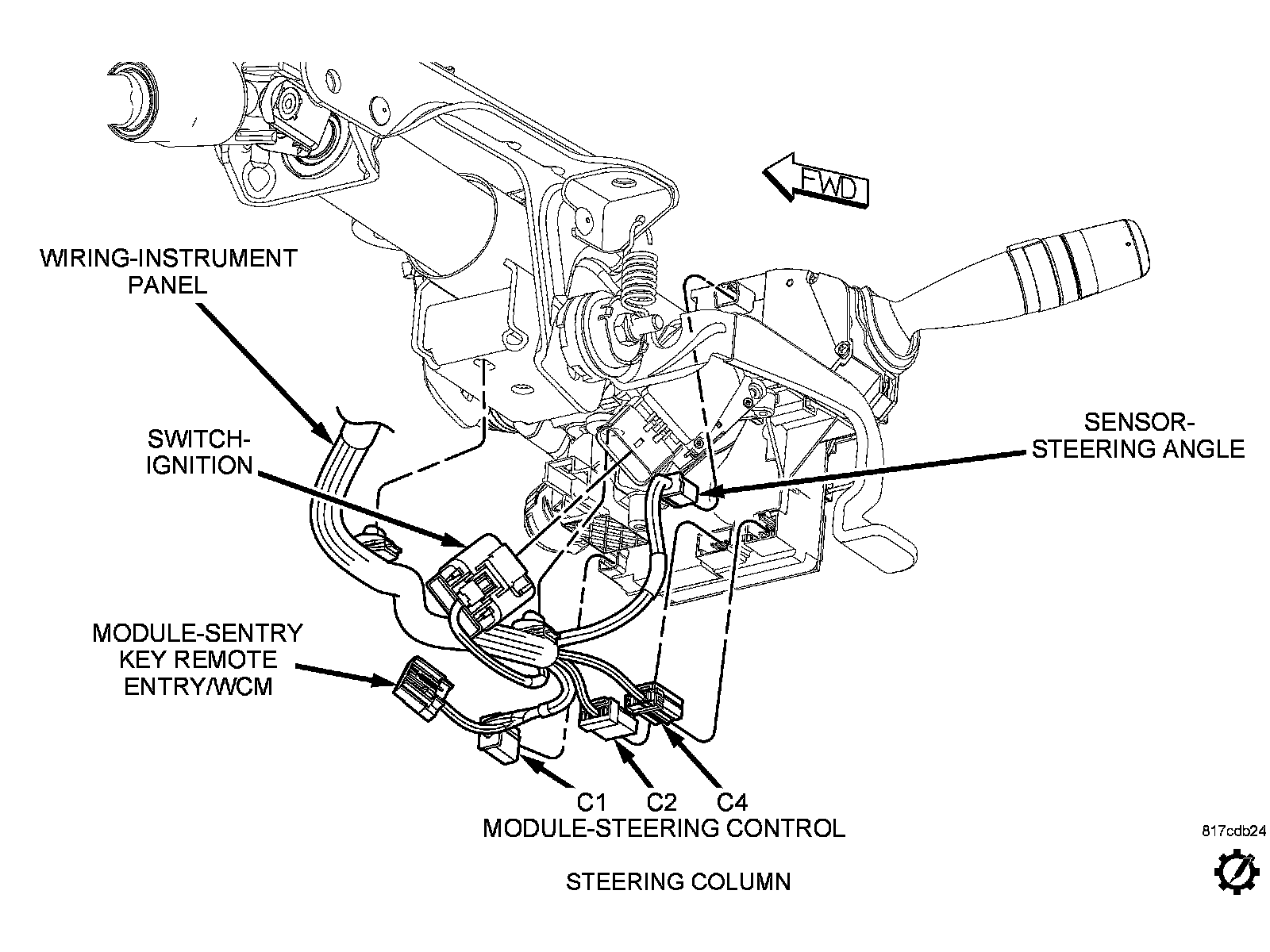

Component Location - 28
