Horn Switch: Locations

Component ID: 344

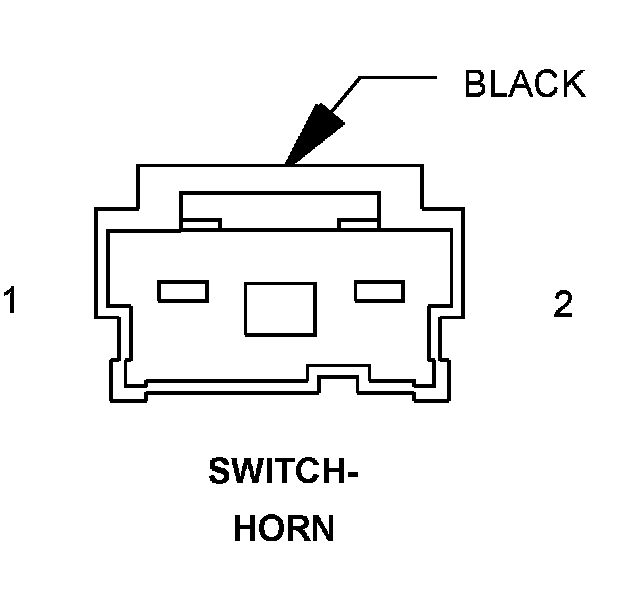

Component : SWITCH-HORN

Connector:
Name : SWITCH-HORN
Color : BLACK
# of pins : 2




Pin Description Circuit
1 HORN SWITCH SENSE X3 20DB
2 RADIO CONTROL RETURN Y13 20BK

Component Location - 34
