Home >> Dodge >> 2007 >> Caliber L4-2.0L VIN B >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Backup Lamp Switch >> Service and Repair >> BG6 Manual Transaxle >> Removal

Removal






REMOVAL




1. Disconnect battery negative cable.
2. Raise vehicle on hoist.
3. Disconnect backup lamp switch connector.

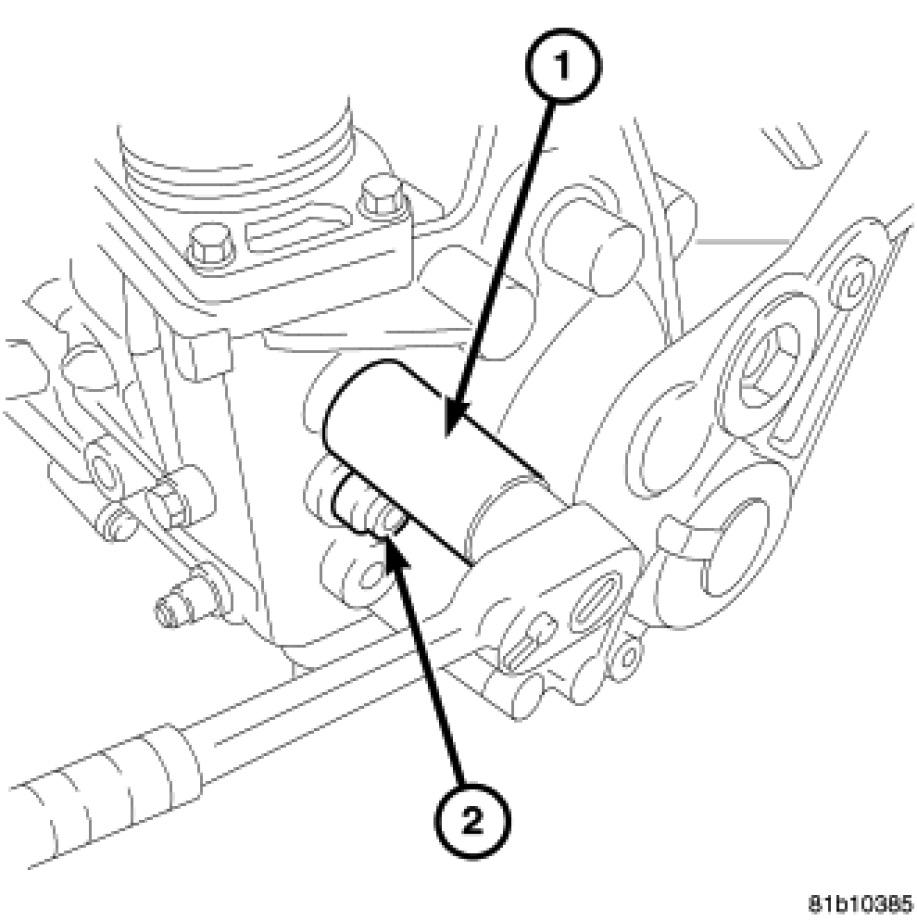

4. Remove backup lamp switch (1).
