Removal

REMOVAL

NOTE: It is not necessary to discharge the refrigerant system to replace the A/C pressure transducer.

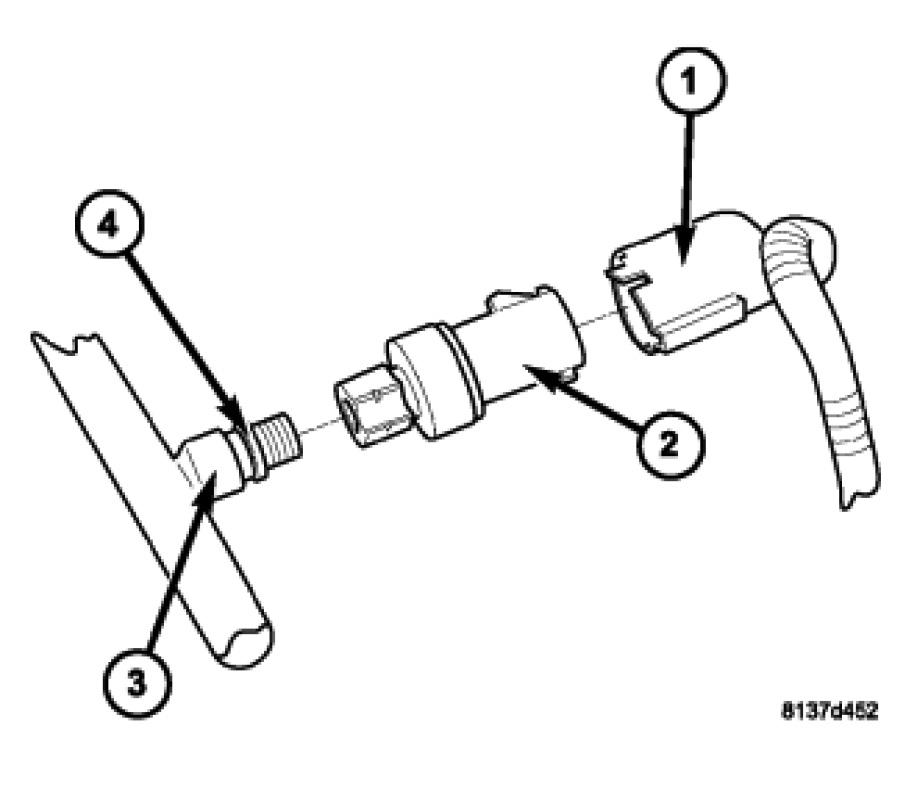

NOTE: Typical A/C pressure transducer shown.

1. Disconnect and isolate the negative battery cable.

2. Carefully pull the top of the fascia forward to gain access to the A/C pressure transducer (2).

3. Reach down through the opening between the A/C condenser and the front fascia and disconnect the wire harness connector (1) from the A/C pressure transducer located on the A/C discharge line (3).

4. Remove the A/C pressure transducer from the fitting on the A/C discharge line and remove and discard the O-ring seal.
