Installation

INSTALLATION

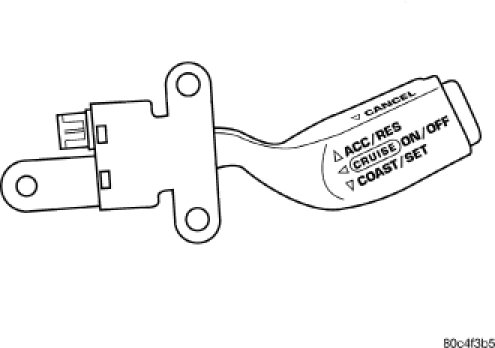

The speed control switch is mounted in the steering wheel and wired through the clock spring device under the airbag module.

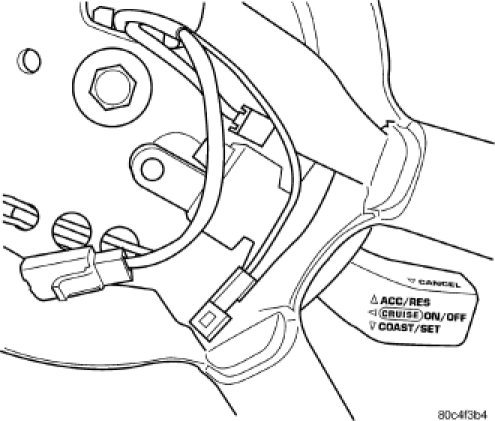

1. Connect the electrical connector to speed control switch.




2. Install the 2 speed control screw.

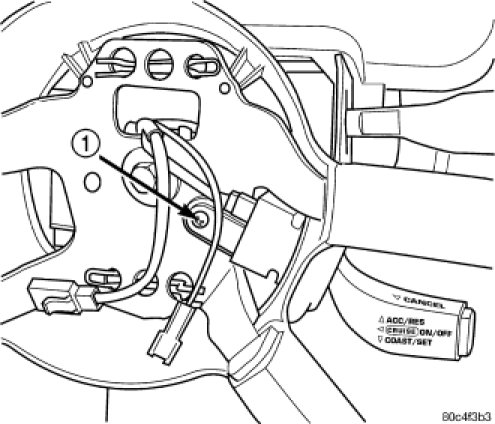

3. Tighten the screws (1) to 1.6 Nm (15 in. lbs.). Make sure rubber seal is in place around switch.

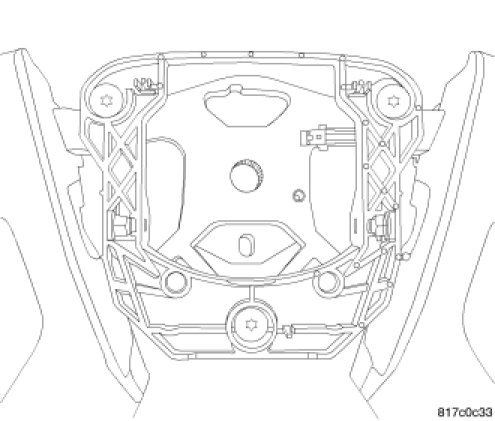

4. Install the horn switch.

5. Install the three mounting fasteners.

6. Connect the electrical connector to the clockspring.

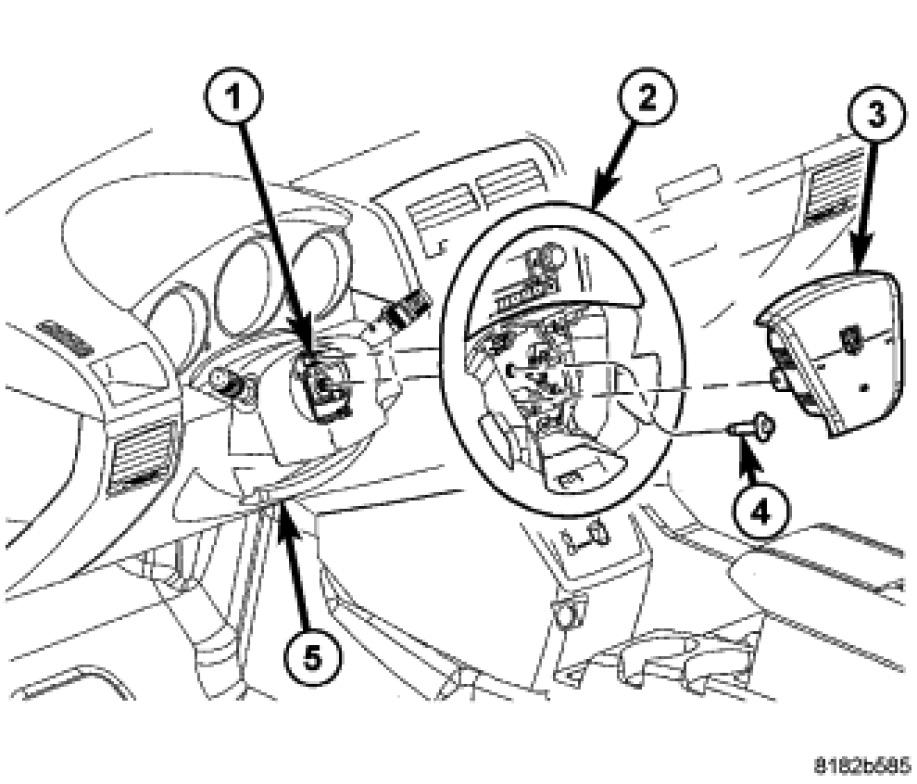

7. Install the driver airbag (3).

WARNING: Do not connect battery negative cable yet.

8. Reconnect battery using Airbag System Test procedure in Restraints.

9. Close hood.

10. Verify vehicle and system operation.
