Sensor-Wheel Speed-ABS-Right Front

Component ID: 321
Component : SENSOR-WHEEL SPEED-ABS-RIGHT FRONT

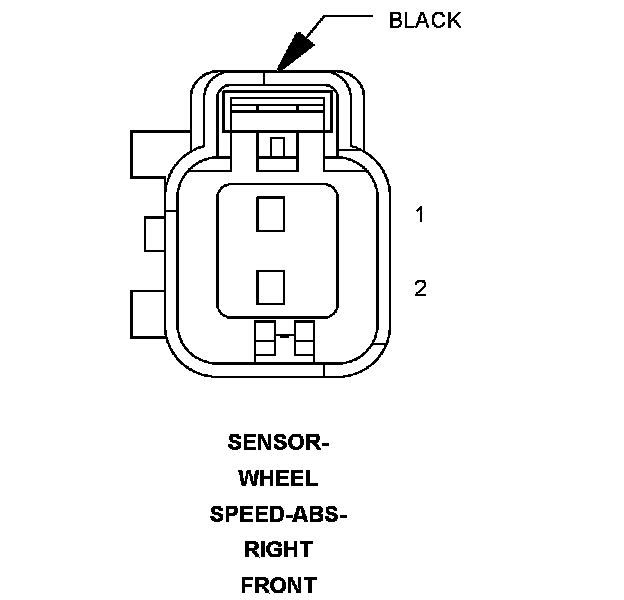

Connector:
Name : SENSOR-WHEEL SPEED-ABS-RIGHT FRONT
Color : BLACK
# of pins : 2




Pin Description Circuit
1 RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY B7 20WT
2 RIGHT FRONT WHEEL SPEED SENSOR SIGNAL B6 20WT/DB

Component Location - 5




Component Location - 6






Connector:
Name : SENSOR-WHEEL SPEED-ABS-RIGHT FRONT
Color :
# of pins : 2
Qualifier : (SENSOR SIDE)




Pin Description Circuit
1 RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY WT
2 RIGHT FRONT WHEEL SPEED SENSOR SIGNAL WT/DB

Component Location - 5




Component Location - 6
