Steering Angle Sensor: Diagrams

Component ID: 316

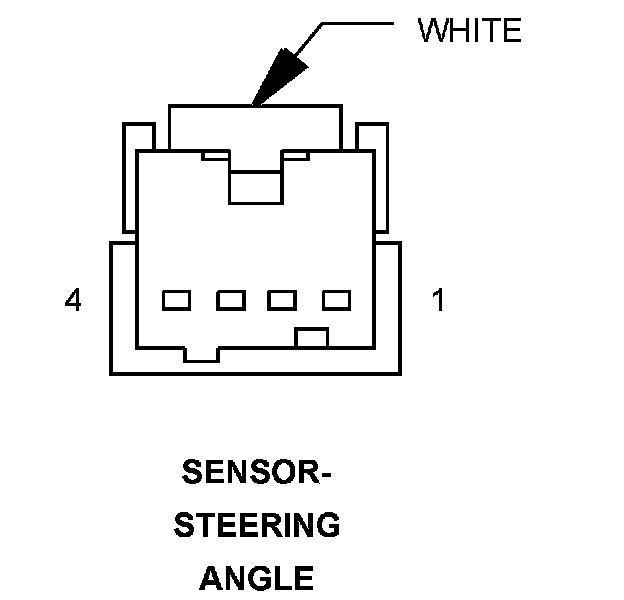

Component : SENSOR-STEERING ANGLE

Connector:
Name : SENSOR-STEERING ANGLE
Color : WHITE
# of pins : 4




Pin Description Circuit
1 CAN C BUS (+) D265 20DB/LB
2 CAN C BUS (-) D264 20DB/WT
3 GROUND Z937 20BK/YL
4 IGNITION SWITCH OUTPUT (RUN-START) F202 20PK/GY

Component Location - 28
