Installation

INSTALLATION

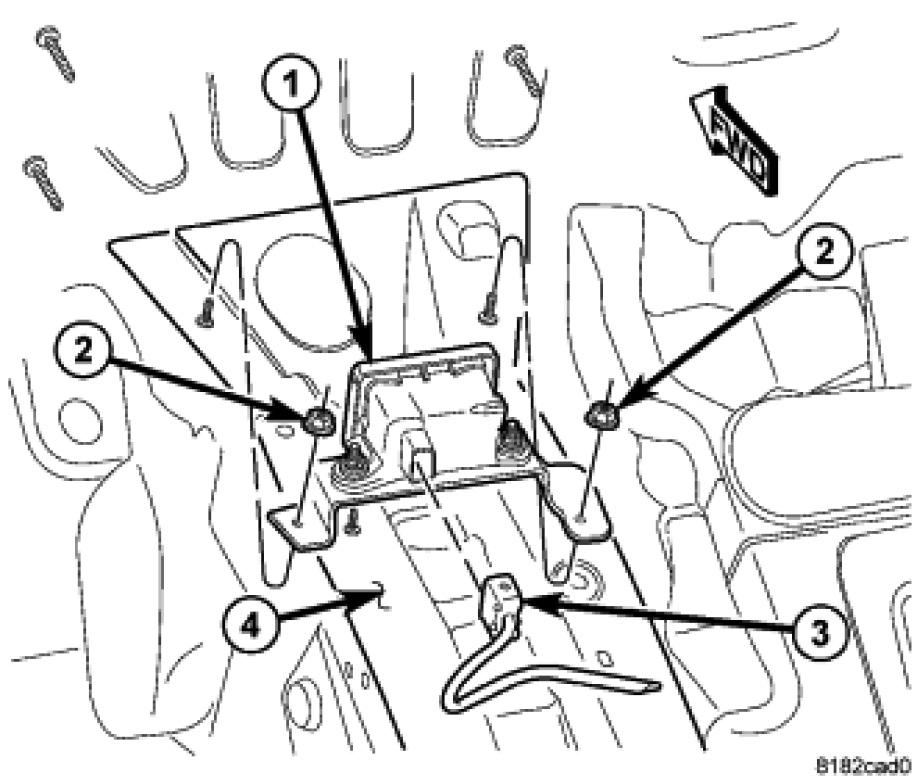

1. Install the dynamics sensor (1) over the studs mounted to the floor pan tunnel (4).
2. Install the two mounting nuts (2). Tighten the nuts to 9 Nm (80 in. lbs.).
3. Connect the wiring harness connector (3) to the dynamics sensor (1).
4. Install the shifter housing center console.
5. Connect the battery negative cable to the battery post. It is important that this be performed properly.
6. Perform the Verification Test and clear any faults. Verification Tests
