Control Switch

CONTROL SWITCH

The following test will determine if the sunroof control switch is operating properly.

1. Remove the sunroof control switch from the overhead console.

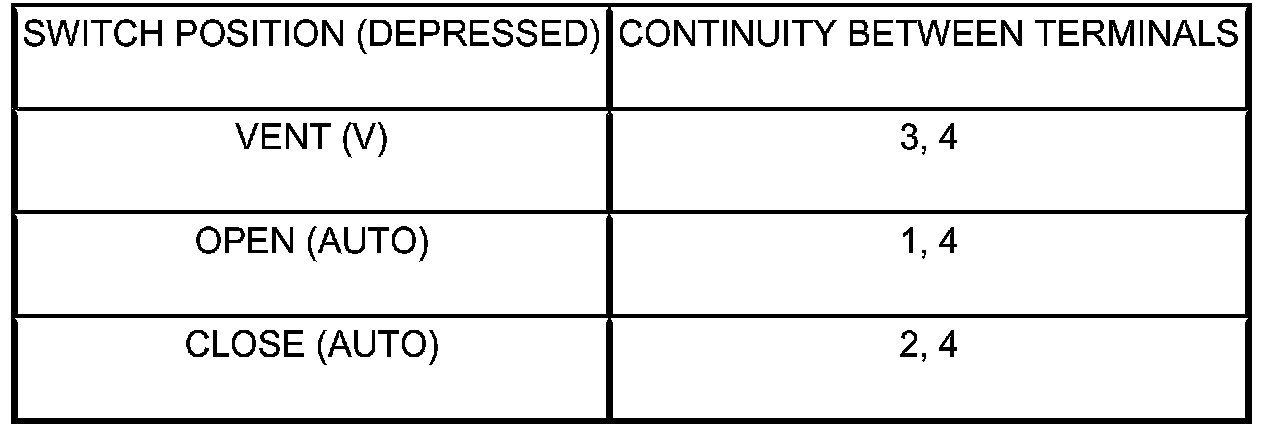

2. Using an ohmmeter, test the switch terminals for proper continuity using the table below. If any of the terminals do not show proper continuity, replace the sunroof control switch.
