Side - C-Pillar

SIDE - C-PILLAR

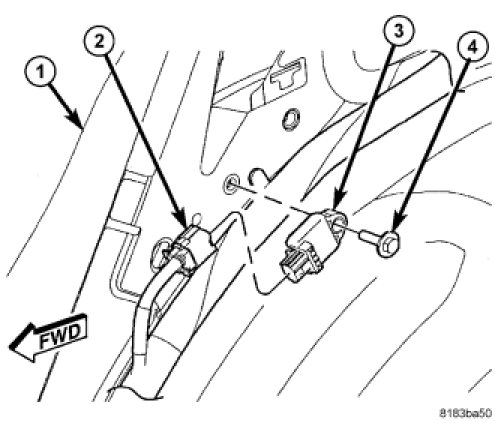

1. Position the side impact sensor near the inner C-pillar.

2. Connect the harness connector (2) to the sensor (3).

3. Position the sensor onto the C-pillar.

NOTE: Be certain that the anti-rotation pin on the back of the sensor is engaged in the clearance hole on the C-pillar below the sensor mounting hole.

4. Install screw (4) that secures the sensor (3) to the C-pillar (1). Tighten the screw to 8 Nm (71 in. lbs.).

5. Install the rear quarter panel trim.

WARNING: Do not connect the battery negative cable. Personal injury or death may result if the system test is not performed first.
