Side - B-Pillar

SIDE - B-PILLAR

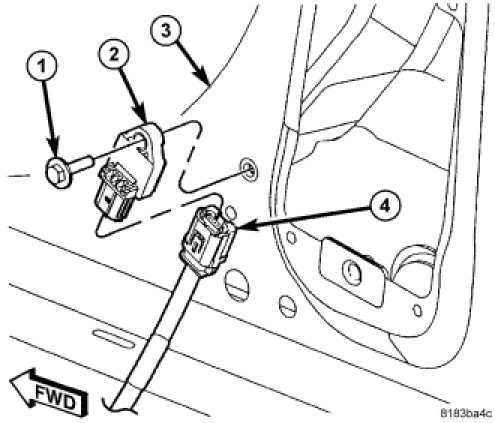

1. Position the sensor onto the B-pillar and install the mounting screw (1). Tighten the screw to 8 Nm (71 in. lbs.).

NOTE: Be certain that the anti-rotation pin on the back of the sensor is engaged in the hole just below the mounting hole in the B-pillar (3).

2. Connect the harness connector (4) to the sensor (2).

3. Install the B-pillar lower trim panel.

WARNING: Do not connect the battery negative cable. Personal injury or death may result if the system test is not performed first.
