Installation

INSTALLATION

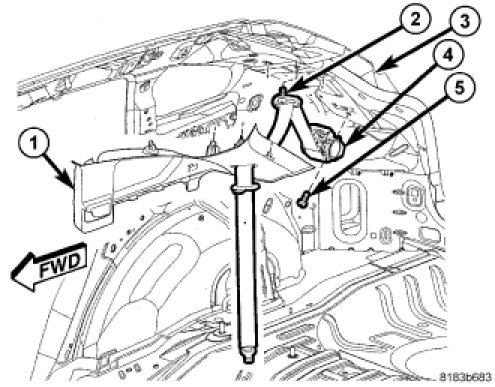

1. Position rear center seatbelt retractor into hollow in the D-pillar (3).

2. Install the rear center seatbelt retractor retaining bolt (5). Tighten bolt to 40 Nm (29.5 ft. lbs.).

3. Feed seatbelt webbing through upper C-pillar trim panel.

4. Install the upper C-pillar trim panel.

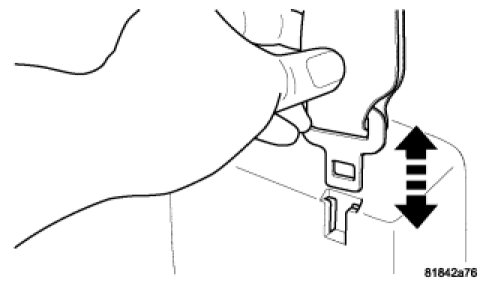

5. If replacing the seatbelt into the latch stowage, place into slot and push down.

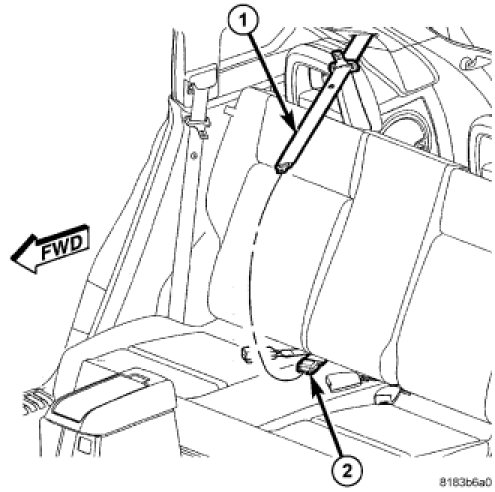

6. If latching seatbelt (1) to anchor (2), attach Quick Connect Anchor (2).
