Right Buckle/Center Seat Belt Anchor Latch

RIGHT BUCKLE/CENTER SEAT BELT ANCHOR LATCH

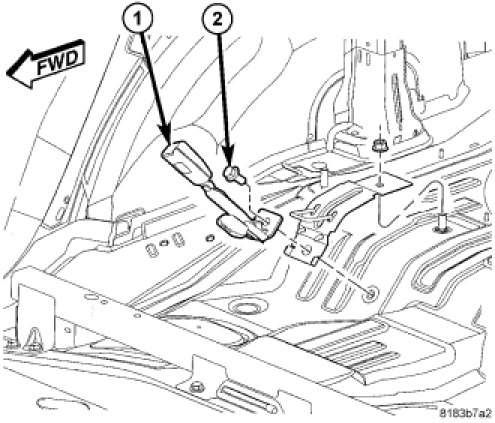

1. Position the right buckle/center seatbelt anchor latch (1) in the vehicle.

2. Install the right buckle/center seatbelt anchor latch retaining bolt (2). Tighten bolt to 56 Nm (41.5 ft. lbs.).

3. Install the rear seat cushion.
