Installation

INSTALLATION




1. 1.Position PAB into instrument panel opening.

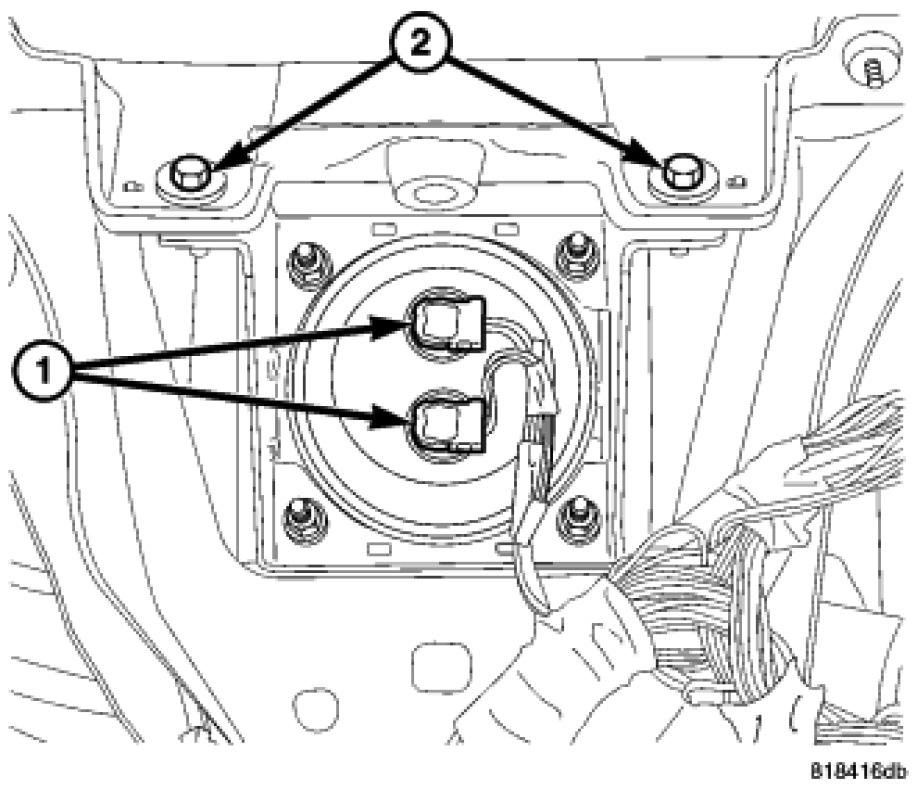

2. Connect the two PAB squib connectors (1).
3. Install air bag unit into the instrument panel opening.
4. Install the two retaining nuts (2) retaining PAB to instrument panel assembly inside glove box opening. Tighten to 9.5 Nm (84 in. lbs.).
5. Install instrument panel top cover.

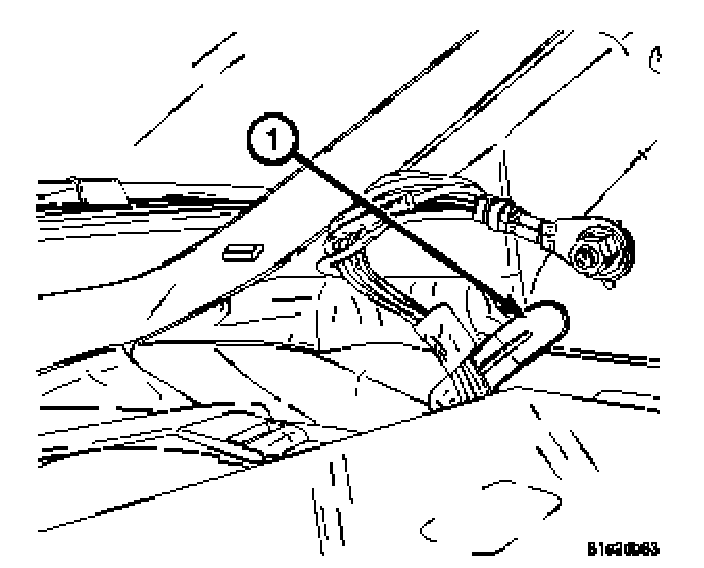

6. Connect wiring harness routing clip to the lower pillar.
7. Install the right and left A-pillar trim panels.
8. Install the glove box.

WARNING: DO NOT CONNECT THE BATTERY NEGATIVE CABLE. PERSONAL INJURY OR DEATH MAY RESULT IF THE SYSTEM TEST IS NOT PERFORMED FIRST. FOR THE SYSTEM TEST, Supplemental Restraints Verification Test
