Airbag-Passenger Squib 2

Component ID: 6
Component : AIRBAG-PASSENGER SQUIB 2

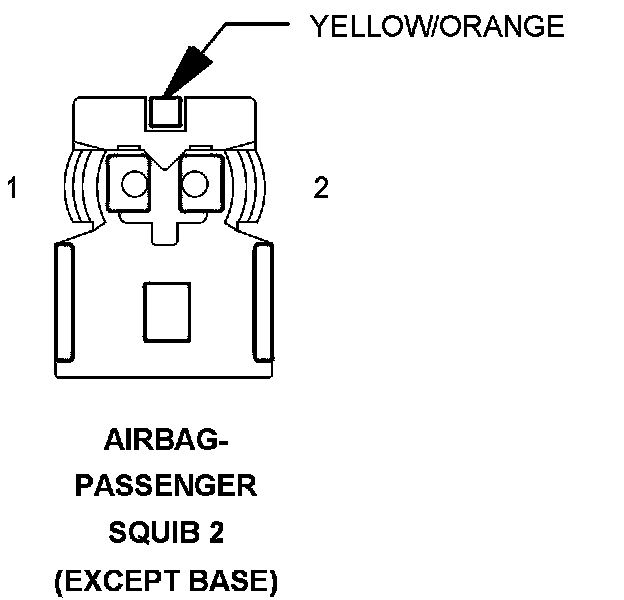

Connector:
Name : AIRBAG-PASSENGER SQUIB 2
Color : YELLOW/ORANGE
# of pins : 2
Qualifier : (EXCEPT BASE)




Pin Description Circuit
1 PASSENGER SQUIB 2 LINE 2 R62 18LB/VT
2 PASSENGER SQUIB 2 LINE 1 R64 18LB/WT
