Airbag-Knee Blocker-Driver

Component ID: 4
Component : AIRBAG-KNEE BLOCKER-DRIVER

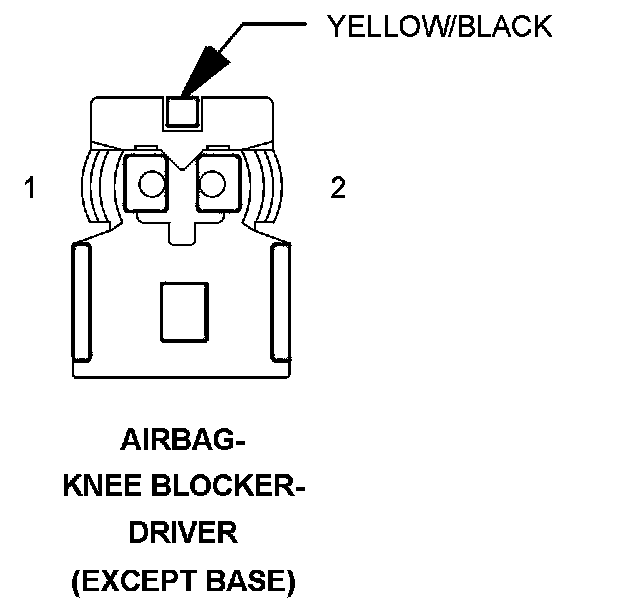

Connector:
Name : AIRBAG-KNEE BLOCKER-DRIVER
Color : YELLOW/BLACK
# of pins : 2
Qualifier : (EXCEPT BASE)




Pin Description Circuit
1 DRIVER KNEE BLOCKER SQUIB LINE 2 R9 18LB/YL
2 DRIVER KNEE BLOCKER SQUIB LINE 1 R11 18LB/DB

Component Location - 23

Fig. 23:

Component Location - 24




Component Location - 26
