Airbag-Passenger Squib 1

Component ID: 5
Component : AIRBAG-PASSENGER SQUIB 1

Connector:

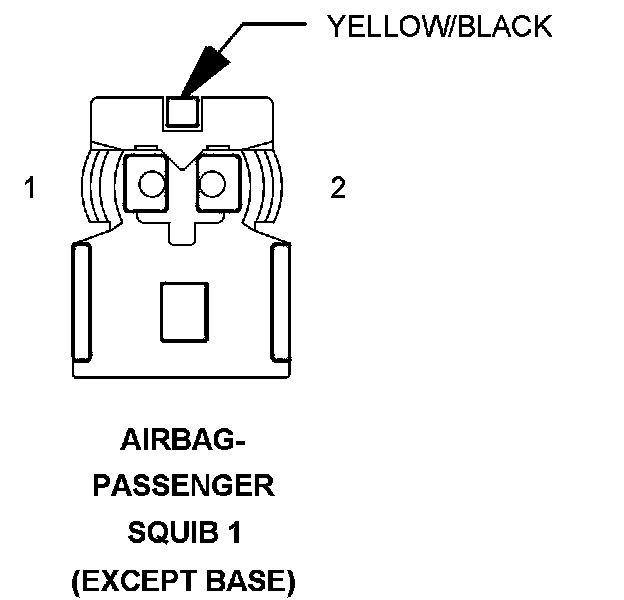

Name : AIRBAG-PASSENGER SQUIB 1
Color : YELLOW/BLACK
# of pins : 2
Qualifier : (EXCEPT BASE)




Pin Description Circuit
1 PASSENGER SQUIB 1 LINE 2 R42 18LB/BR
2 PASSENGER SQUIB 1 LINE 1 R44 18LB/OR

Component Location - 25




Component Location - 29

Fig. 29:

Component Location - 31




Component Location - 33

Fig. 33:
