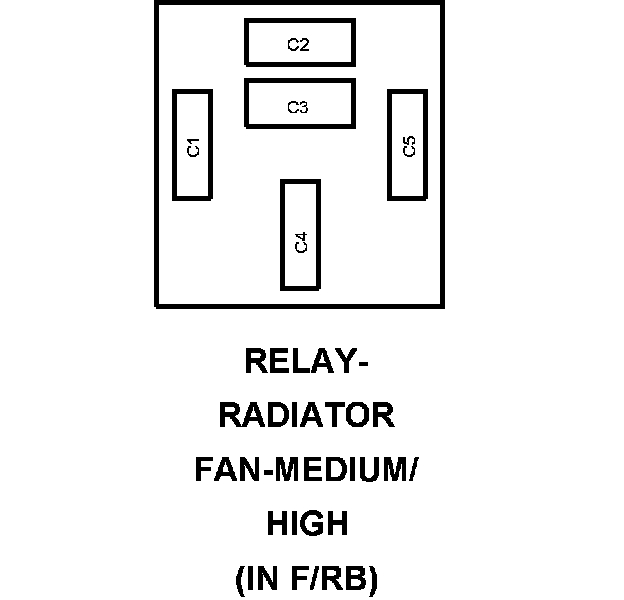

Relay-Radiator Fan-Medium/High

Component ID: 184
Component : RELAY-RADIATOR FAN-MEDIUM/HIGH

Connector:
Name : RELAY-RADIATOR FAN-MEDIUM/HIGH
Color :
# of pins : 0




C1 FUSED B(+) A16 12RD/BR
C2 RAD FAN RELAY OUTPUT N24 12DG/DB
C3 - -
C4 FUSED B(+) A16 12RD/BR
C5 RAD FAN RELAY CONTROL N112 20DB/OR
