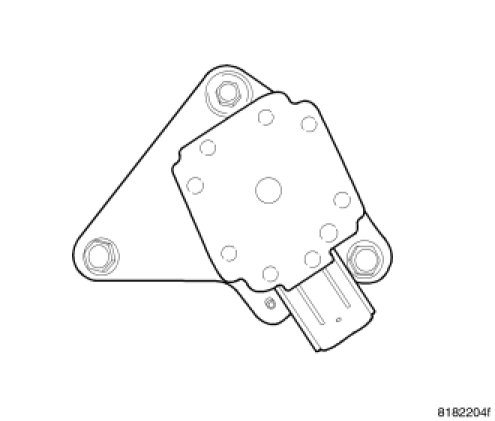

Removal






REMOVAL




1. Disconnect negative battery cable.

2. Remove air tube.




3. Disconnect electrical connector.

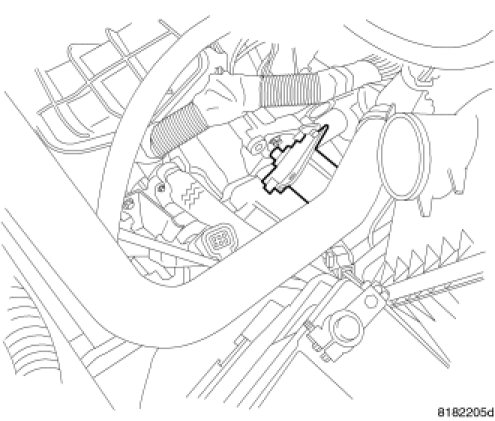

4. Remove 3 mounting screws.




5. Remove valve.
