Installation

2.0/2.4L

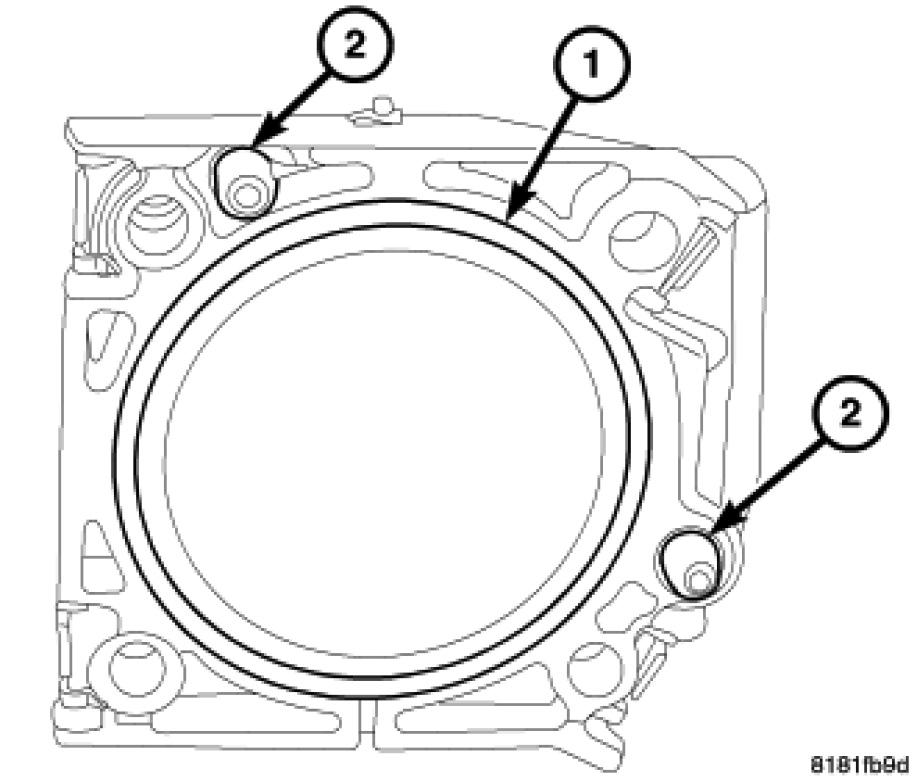

1. Make sure that the throttle body O-ring (1) is in place in the manifold.

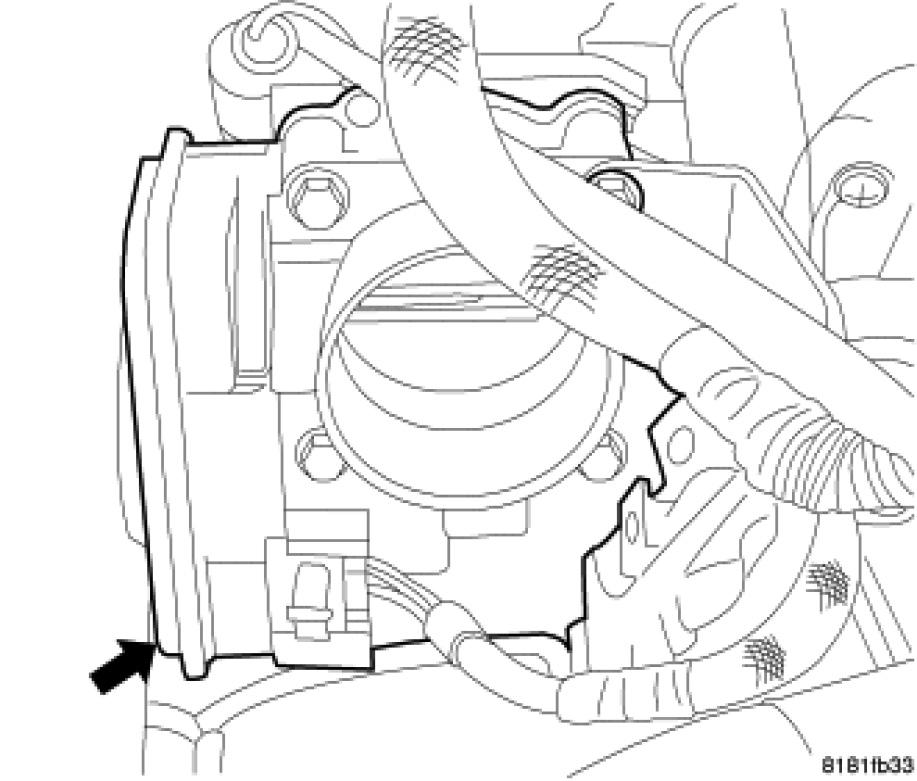

2. Position throttle body on intake manifold alignment pins and install 2 mounting bolts. Do Not tighten bolts at this time.

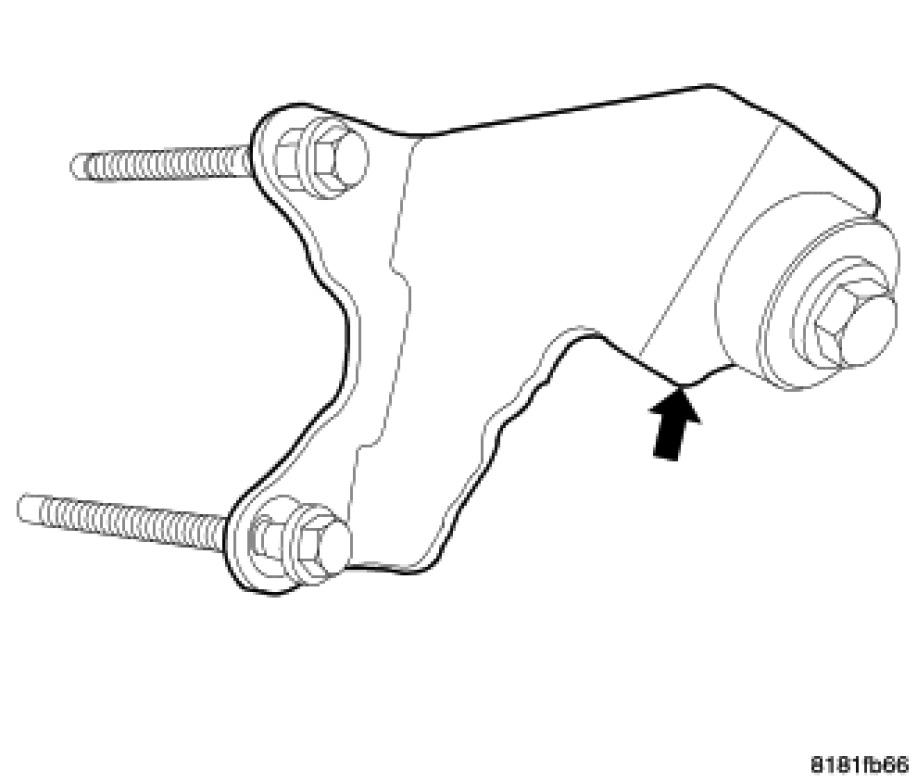

3. Install throttle body bracket.

4. Tighten throttle body bolts in a cross pattern to 9 Nm (79.5 in. lbs.).

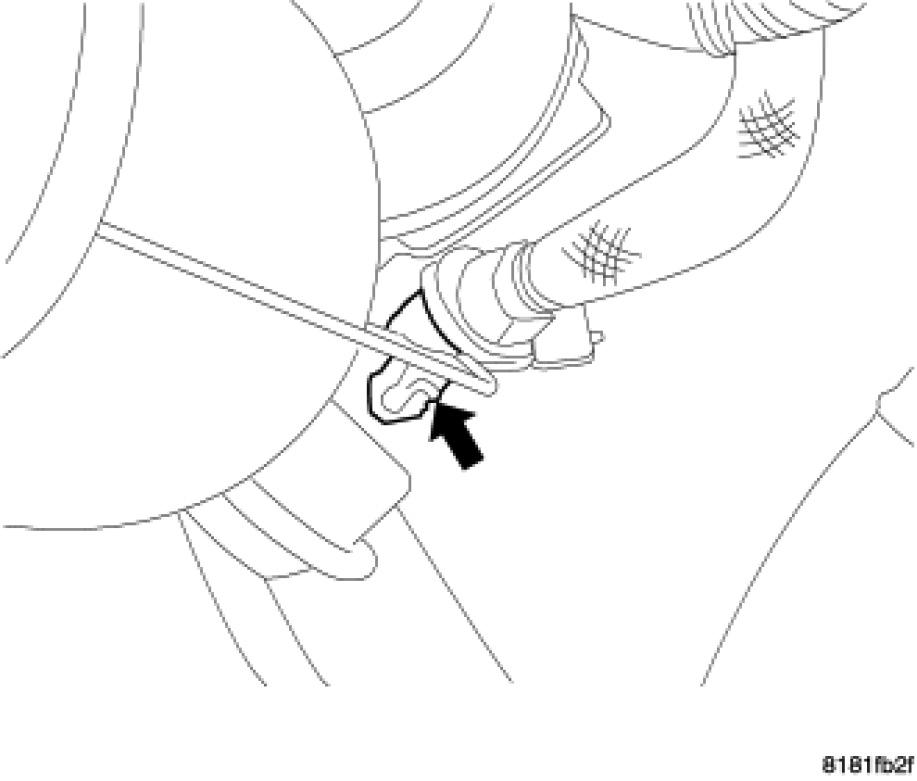

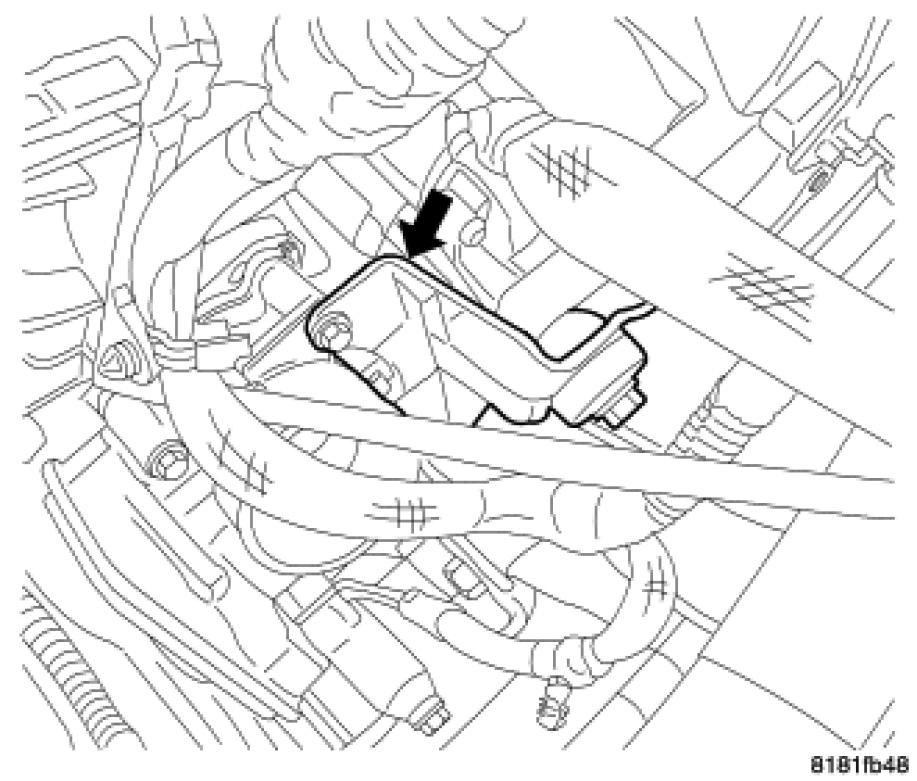

5. Throttle body bracket installed.

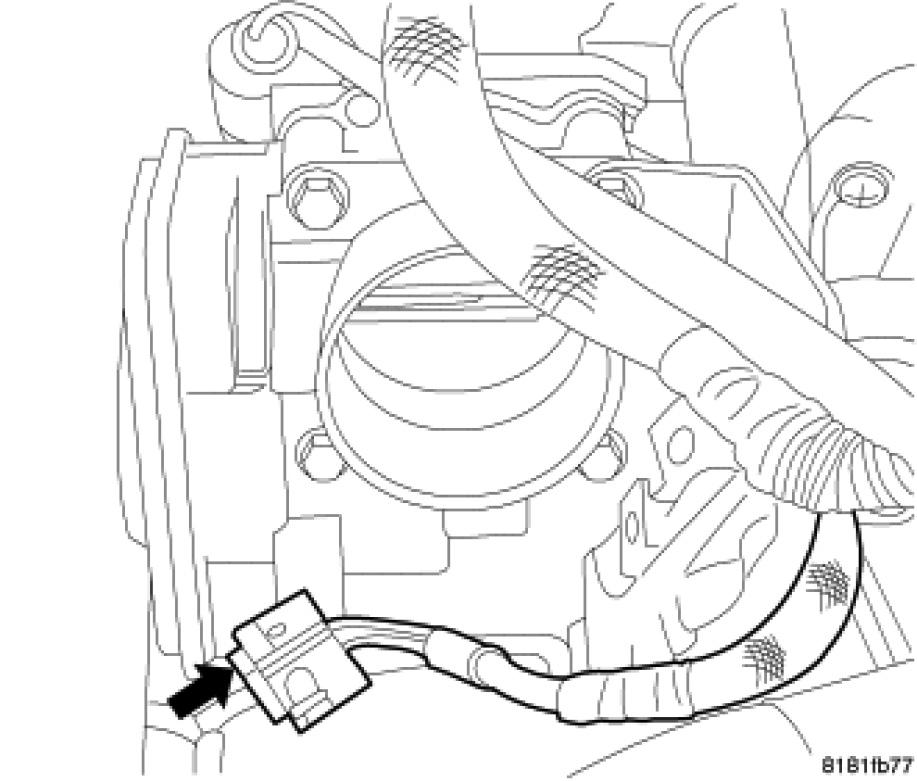

6. Connect electrical connector to throttle body.




7. Install air tube and connect wiring harness to air tube.

8. Connect negative battery cable.

9. A Scan Tool may be used to learn electrical parameters. Go to the Miscellaneous menu, and then select ETC Relearn. If the relearn is not preformed, a Diagnostic Trouble Code (DTC) will be set. If necessary, use a scan tool to erase any Diagnostic Trouble Codes (DTC's) from PCM.
