Connector Views

Component ID: 150
Component : MODULE-FUEL PUMP

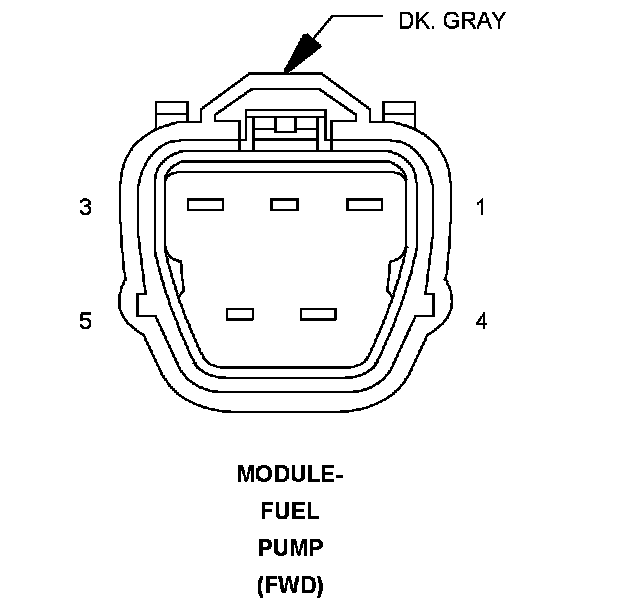

Connector:
Name : MODULE-FUEL PUMP
Color : DK. GRAY
# of pins : 5
Qualifier : (FWD)




Pin Description Circuit
1 GROUND Z965 16BK/GY
2 FUEL LEVEL SIGNAL 1 N4 20DB/WT
3 - -
4 GROUND Z964 16BK/WT
4 GROUND Z964 16BK
5 FUEL PUMP CONTROL OUTPUT N1 16DB/OR

Component Location - 58




Component Location - 59

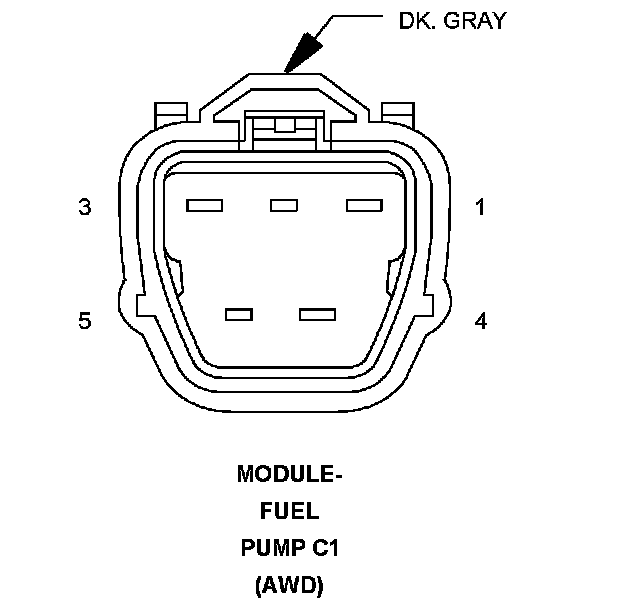

Connector:
Name : MODULE-FUEL PUMP C1
Color : DK. GRAY
# of pins : 5
Qualifier : (AWD)




Pin Description Circuit
1 GROUND Z965 20BK/GY
2 FUEL LEVEL SIGNAL 1 N4 20DB/WT
3 - -
4 GROUND Z964 16BK/GY
4 GROUND Z964 18BK/WT
5 FUEL PUMP CONTROL OUTPUT N1 16DB/OR

Component Location - 58




Component Location - 59

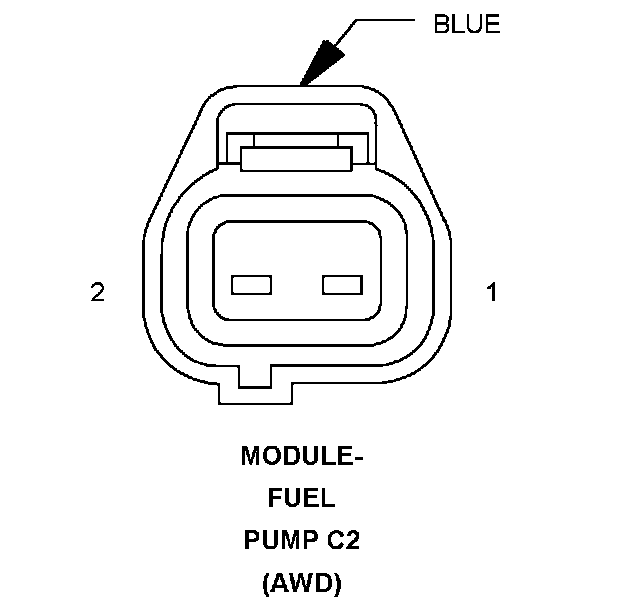

Connector:
Name : MODULE-FUEL PUMP C2
Color : BLUE
# of pins : 2
Qualifier : (AWD)




Pin Description Circuit
1 GROUND Z965 20BK/GY
2 FUEL LEVEL SIGNAL 2 N5 20DB/BK

Component Location - 58




Component Location - 59
