Home >> Dodge >> 2007 >> Caliber L4-2.0L VIN B >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Positive Crankcase Ventilation >> Positive Crankcase Ventilation Valve >> Service and Repair >> Removal

Removal






REMOVAL




1. Remove the engine cover.

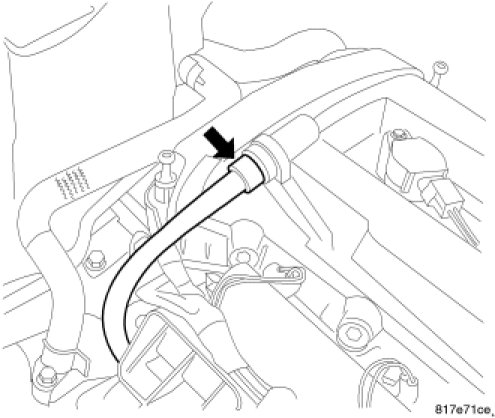

2. Remove the hose from the PCV valve.




3. Unscrew the PCV valve.
