Leak Detector: Diagrams

Component ID: 342
Component : SWITCH-EVAP SYSTEM MONITOR

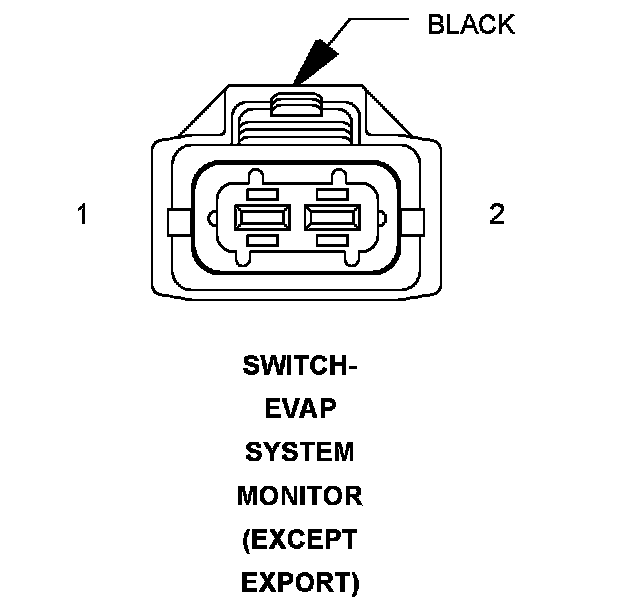

Connector:
Name : SWITCH-EVAP SYSTEM MONITOR
Color : BLACK
# of pins : 2
Qualifier : (EXCEPT EXPORT)




Pin Description Circuit
1 GROUND Z965 20BK
Pin Description Circuit
1 GROUND Z965 20BK/GY
2 ESM SIGNAL K107 18VT/LB
2 ESM SIGNAL K107 20VT/LB

Component Location - 58
