Removal

REMOVAL




1. Remove air inlet resonator assembly.

2. Remove the air cleaner box.

3. Disconnect negative battery cable.

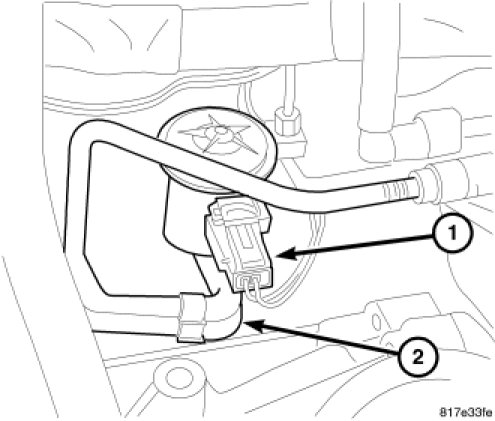

4. Unlock and disconnect electrical connector (1) from solenoid.

5. Disconnect vacuum tubes (2) from solenoid.

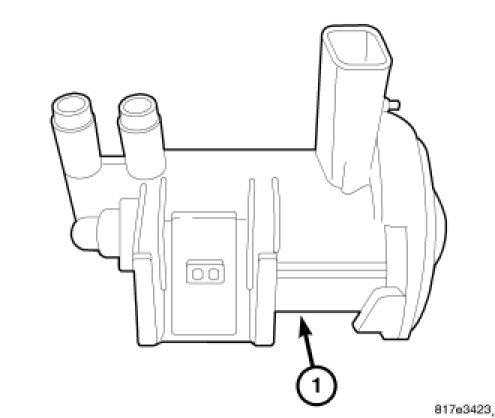

6. Remove solenoid (1) from bracket by depressing clip and pulling solenoid from bracket.
