INSTALLATION - MANIVERTER





NOTE: When assembling exhaust system do not tighten clamps until all components are aligned and clearances are checked.

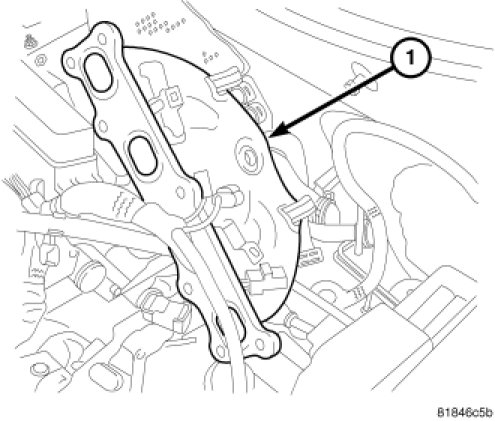

1. Position maniverter (1) in vehicle. Use a new flange gasket.
2. Using new gasket, install maniverter (1) and mounting bolts. Tighten bolts to 28 Nm (250 in. lbs.).
3. Install secondary thermostat.
4. Install under floor catalytic converter.
5. Working from the front of system; align each component to maintain position and proper clearance with underbody parts.
6. Start the engine and inspect for exhaust leaks. Repair exhaust leaks as necessary.
7. Check the exhaust system for contact with the body panels. Make the necessary adjustments, if needed.
