Service Procedure
NOTE:the accelerator pedal must be removed from the vehicle to perform the inspection.
1. Disconnect the negative battery cable.
NOTE:
To enhance customer satisfaction, remember to reset the clock when you have completed the service procedure.
2. Remove the three accelerator pedal mounting nuts (Figure 1).
3. Disconnect the accelerator pedal electrical connector.
4. Remove the accelerator pedal from the vehicle.

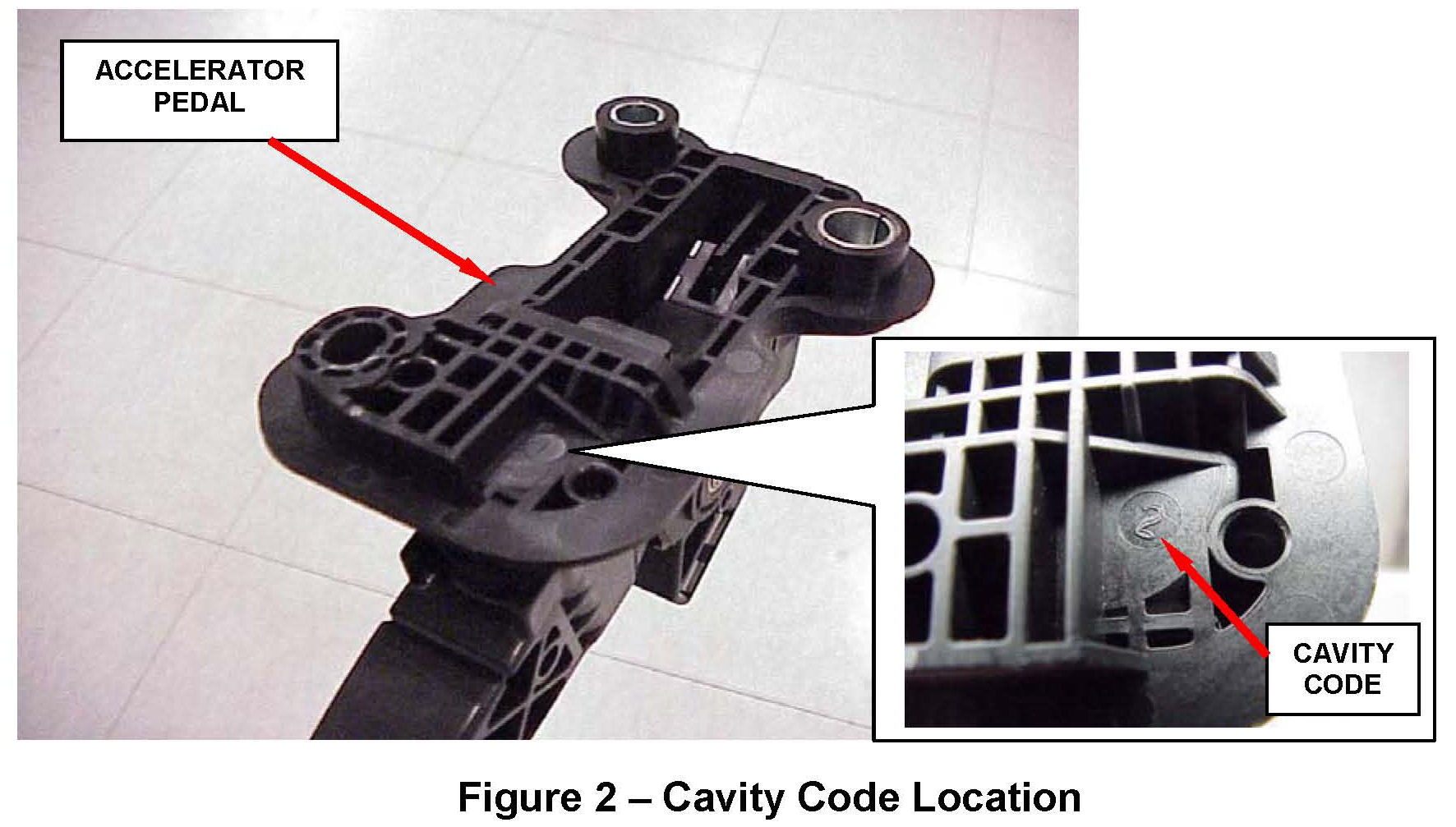

5. Inspect the cavity code located on the backside of the accelerator pedal (Figure 2):
> If the cavity code is a number 1, the pedal assembly does not require replacement. Continue to Step 7 of this procedure.
> If the cavity code is a number 2, the accelerator pedal date code must be inspected. Continue with Step 6 of this procedure.

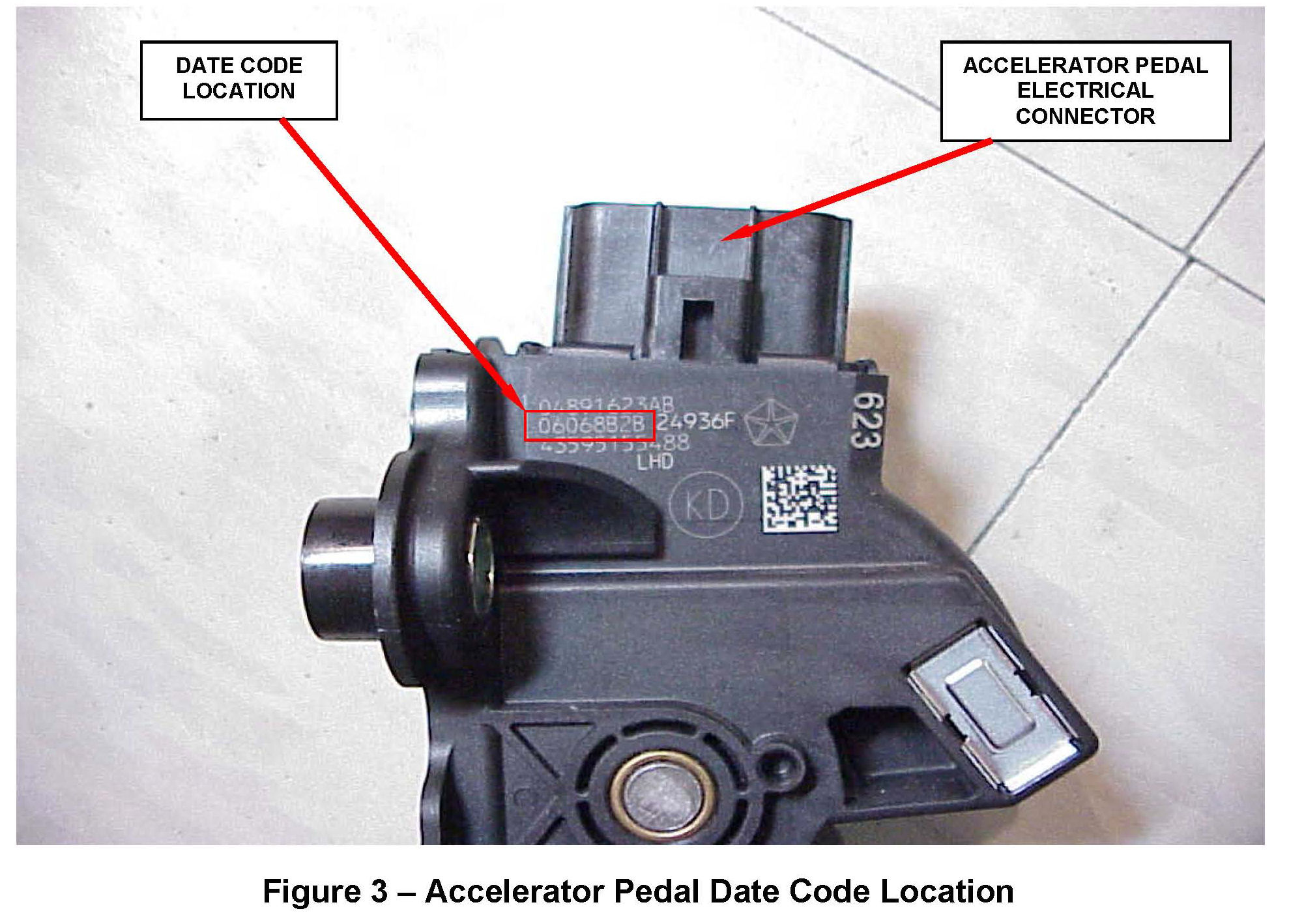

6. Inspect the accelerator pedal date code.
UNDERSTANDING THE DATE CODE: The first two digits are the year
(06 = 2006). The next three digits are the day of the year it was built
(068 = the 68th day). Disregard the last three digits of the date code. For example, the date code on the pedal assembly in Figure 3 is 06068828. The first two digits are 06 (built in 2006), the next three digits are 068
(the 68th day). Ignore the last three digits.
> If the date code is 06059xxx or lower or it is 06095xxx or higher, the accelerator pedal does not require replacement. Continue with Step 7 of this procedure.
> If the date code is 06060 through 06094, replace the accelerator pedal.
Continue with Step 7 of this procedure.
> If the date code is not legible, replace the accelerator pedal. Continue with Step 7 of this procedure.
7. Connect the accelerator pedal electrical connector to the new accelerator pedal or original accelerator pedal (depending on inspection results).

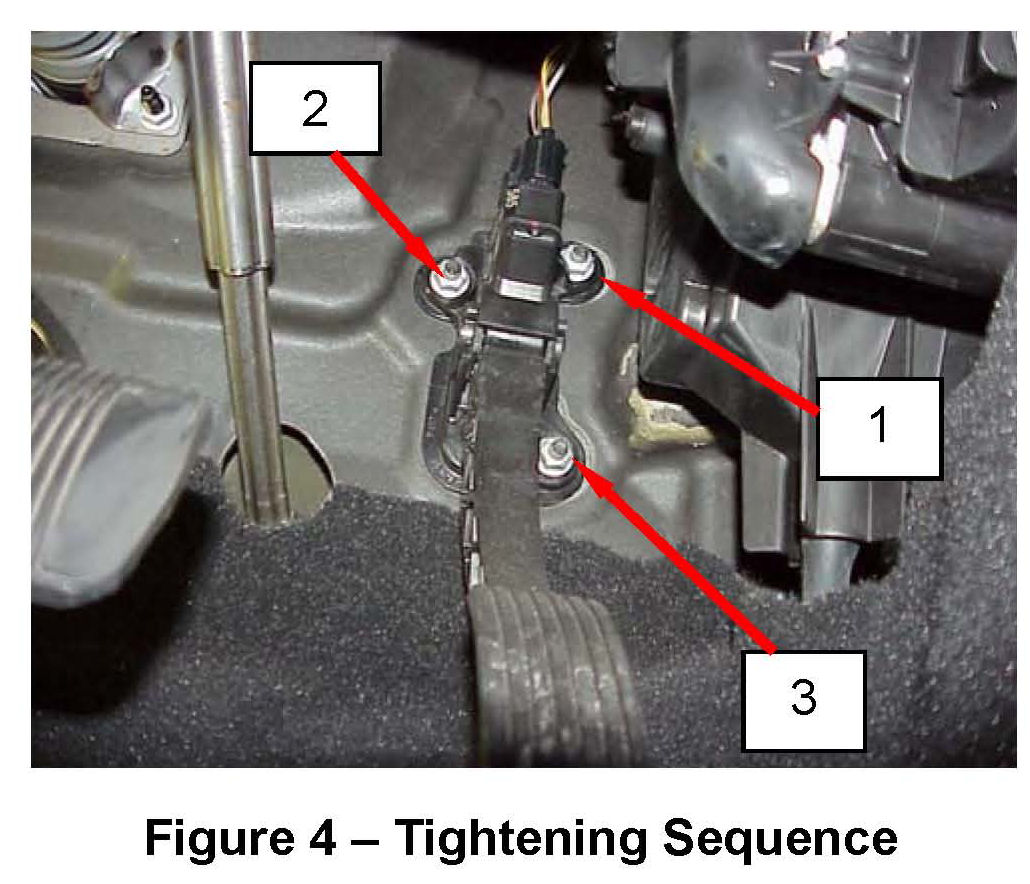

8. Install the accelerator pedal into the vehicle and tighten the mounting nuts to 22 ft. lbs. (30 N.m) in the sequence shown in Figure 4.
9. Connect the negative battery cable.
10. On vehicles that had the original accelerator pedal installed, no further action is required. On vehicles that had the accelerator pedal replaced, continue with Step 11.
11. Use one of the following scan tools and related procedure to perform the "Learn ETC" procedure:
Using wiTECH:
a. Connect the wiPOD to the vehicle data link connector.
b. Place the ignition key in the "RUN" position.
c. Launch the wiTECH diagnostic application.
d. Select "PCM" from the vehicle view screen.
e. Select the "MISC FUNCTION" tab.
f. Select "Learn ETC" from the list.
g. Follow the screen prompts.
h. Clear all DTC's.
NOTE:
Due to the "Learn ETC" procedure, DTC(s) may be set in other modules (PCM, TCM, ABS, BCM, MIC, WCM, etc.) within the vehicle, if so equipped. Some DTC's may cause the MIL to illuminate.
i. Place the ignition in the "OFF" position, remove the wiPOD from the data link connector
Using StarMOBILE:
a. Connect the StarMOBILE scan tool to the vehicle data link connector located under the steering column and turn the ignition key to the "RUN" position.
b. Connect the CH9410 StarMOBILE scan tool ethernet cable to the StarMOBILE and the dealer's network drop.
c. Power ON the StarMOBILE scan tool.
d. From the desktop, launch the "StarMOBILE Desktop Client" software.
e. Establish a connection with the StarMOBILE scan tool.
f. Starting at the "Home" screen, select "ECU View".
g. Select "Misc Functions".
h. Select "Learn ETC".
i. Follow the screen prompts.
j. Clear any Diagnostic Trouble Codes (DTCs) as follows:)
NOTE:
Due to the "Learn ETC" procedure, DTC(s) may be set in other modules (PCM, TCM, ABS, BCM, MIC, WCM, etc.) within the vehicle, if so equipped. Some DTC's may cause the MIL to illuminate.
1. From the "Home" screen select "System View".
2. Select "All DTCs".
3. Press "Clear All Stored DTCs" if there are any DTCs shown on the list.
