Vehicle Speed Sensor: Locations

Component ID: 318
Component : SENSOR-VEHICLE SPEED

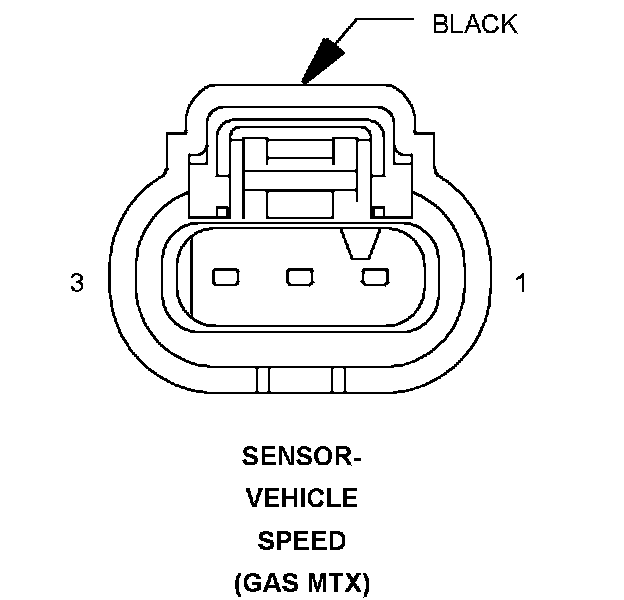

Connector:
Name : SENSOR-VEHICLE SPEED
Color : BLACK
# of pins : 3
Qualifier : (GAS MTX)




Pin Description Circuit
1 5 VOLT SUPPLY F856 20YL/PK
2 SENSOR GROUND K914 18BR/WT
3 VEHICLE SPEED SIGNAL K75 18WT/OR

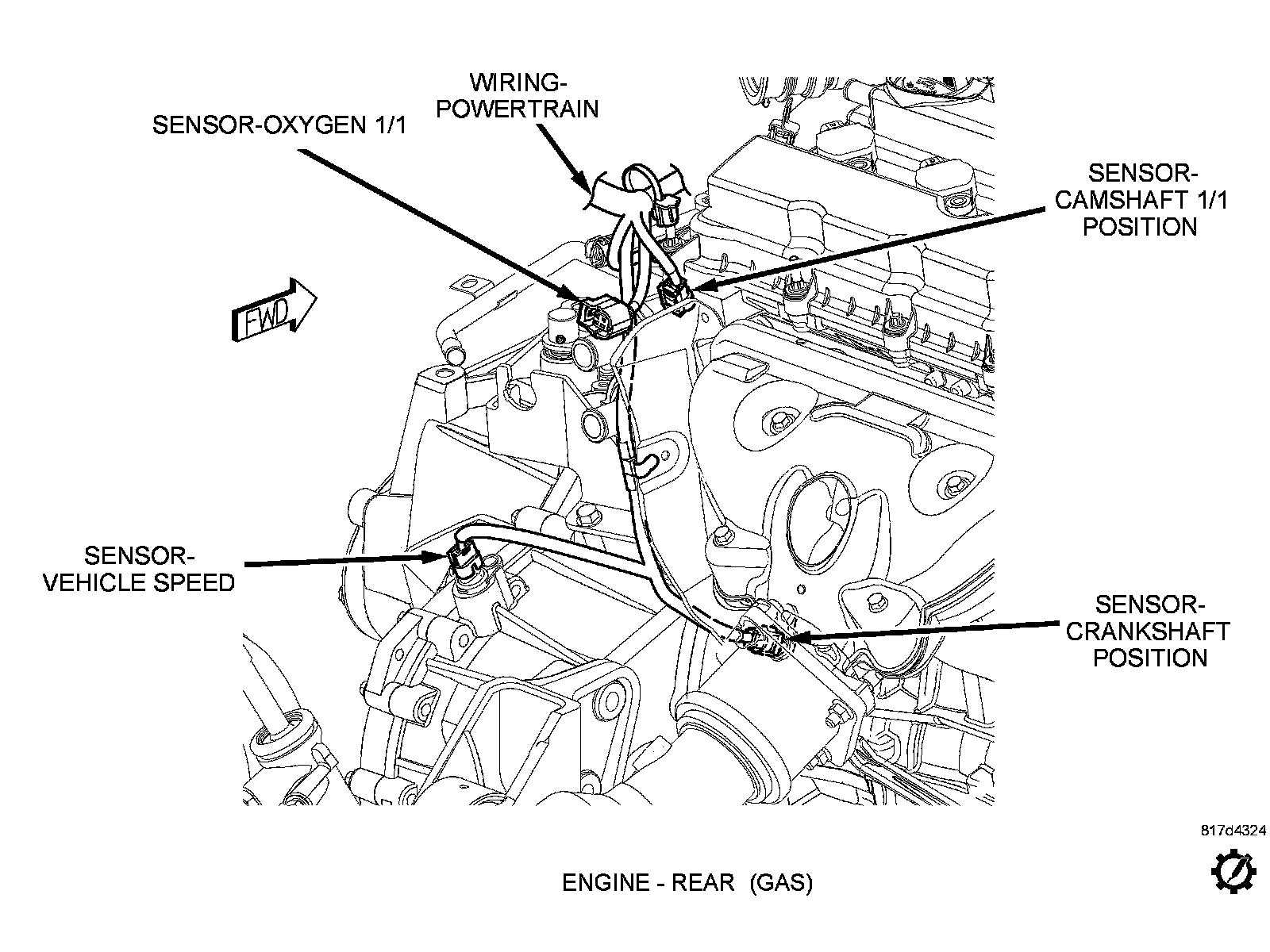

Component Location - 17
