Removal

REMOVAL

WARNING: Disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions could result in accidental airbag deployment and possible personal injury or death.




1. Disconnect and isolate the negative battery cable.

2. Remove the shift bezel.

3. Remove the center bezel from the instrument panel.

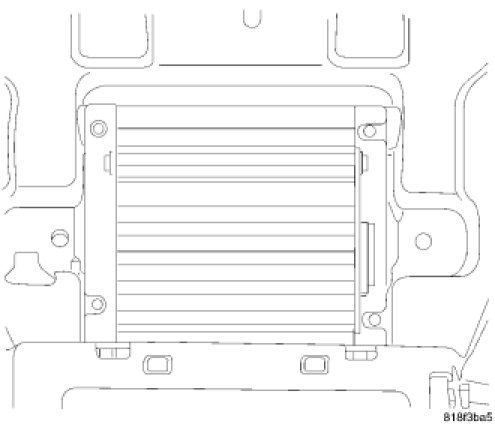

4. Remove the fasteners from the mounting brackets of the inverter module.

5. Disconnect the electrical connectors and remove the inverter module.
