Recall - Rear Wheel Hub Mounting Bolt Replacement: Overview
May 2007Dealer Service Instructions for:
Safety Recall G15
Rear Wheel Hub Mounting Bolts
Models
2007 (MK) Jeep(R) Compass and Patriot
2007 (PM) Dodge Caliber
NOTE:
This recall applies only to the above vehicles equipped with rear disc brakes (sales code BRF or BR1) built from November 29, 2006 through March 15, 2007 (MDH 112910 through 031507).
IMPORTANT:
Many of the vehicles within the above build period have already been inspected or repaired and, therefore, have been excluded from this recall.
IMPORTANT:
Some of the involved vehicles may be in dealer new vehicle inventory. Federal law requires you to complete this recall service on these vehicles before retail delivery. Dealers should also consider this requirement to apply to used vehicle inventory and should perform this recall on vehicles in for service. Involved vehicles can be determined by using the VIP inquiry process.
Subject
The length of the rear wheel hub mounting bolts on about 400 of the above vehicles may prevent actuation of the park brake. This could allow unintended movement of the vehicle under certain conditions and cause a crash without warning. As a result, these vehicles fail to conform to Federal Motor Vehicle Safety Standard (FMVSS) 135 Light Vehicle Brake System.
Repair
The rear wheel hub mounting bolts on both rear wheels must be replaced. The brake cable equalizer for the park brake must also be replaced.

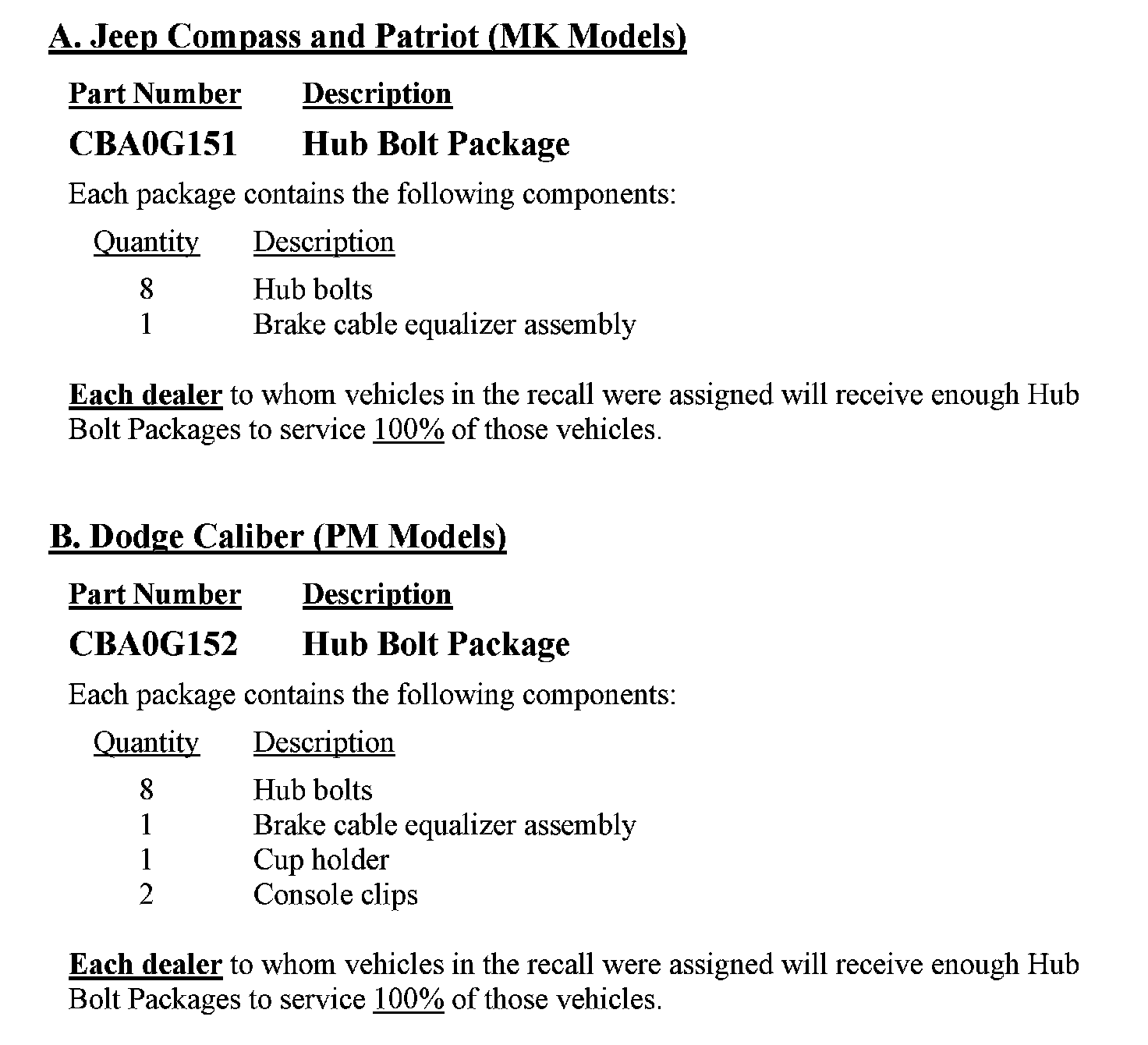

Parts Information
Completion Reporting and Reimbursement
Claims for vehicles that have been serviced must be submitted on the DealerCONNECT Claim Entry Screen located on the Service tab. Claims submitted will be used by DaimlerChrysler to record recall service completions and provide dealer payments.

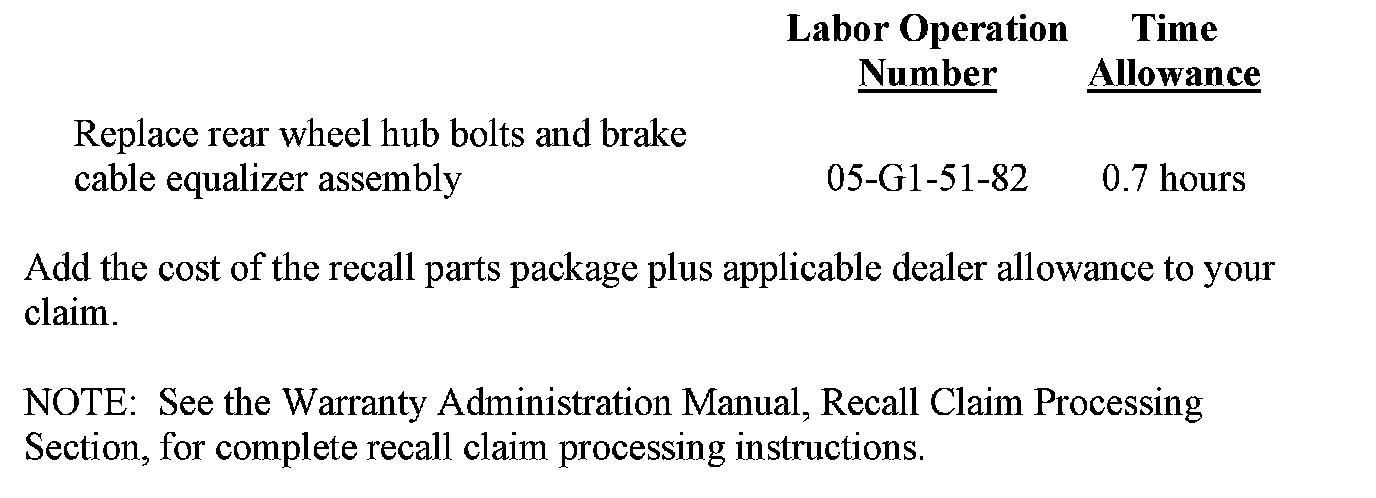

Use the labor operation number and time allowance as shown.
Dealer Notification
All dealers will receive three copies of this dealer recall notification letter by mail. To view this notification on DealerCONNECT, select "Global Recall System" on the Service tab, then click on the description of this notification.
Owner Notification and Service Scheduling
All involved vehicle owners known to DaimlerChrysler are being notified of the service requirement by first class mail. They are requested to schedule appointments for this service with their dealers. A generic copy of the owner letter is included.
Enclosed with each owner letter is an Owner Notification postcard to allow owners to update our records if applicable.
Vehicle Lists, Global Recall System, VIP and Dealer Follow Up
All involved vehicles have been entered into the DealerCONNECT Global Recall System (GRS) and Vehicle Information Plus (VIP) for dealer inquiry as needed.
GRS provides involved dealers with an updated VIN list of their incomplete vehicles.
The owner's name, address and phone number are listed if known. Completed
vehicles are removed from GRS within several days of repair claim submission.
To use this system, click on the "Service" tab and then click on "Global Recall System." Your dealer's VIN list for each recall displayed can be sorted by: those vehicles that were unsold at recall launch, those with a phone number, city, zip code, or VIN sequence.
Dealers must perform this repair on all unsold vehicles before retail delivery. Dealers should also use the VIN list to follow up with all owners to schedule appointments for this repair.
Recall VIN lists may contain confidential, restricted owner name and address information that was obtained from the Department of Motor Vehicles of various states. Use of this information is permitted for this recall only and is strictly prohibited from all other use.
Additional Information
If you have any questions or need assistance in completing this action, please contact your Service and Parts District Manager.
Customer Services Field Operations
DaimlerChrysler Corporation
