Lamp-Tail Turn-Right

Component ID: 130

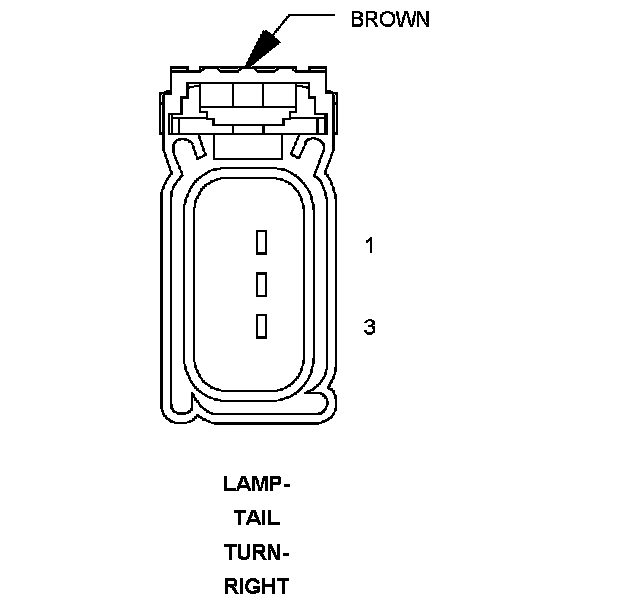

Component : LAMP-TAIL TURN-RIGHT

Connector:
Name : LAMP-TAIL TURN-RIGHT
Color : BROWN
# of pins : 3




Pin Description Circuit
1 GROUND Z964 20BK/WT
2 - -
3 RIGHT REAR TURN SIGNAL L62 20WT/YL

Component Location - 63




Component Location - 68




Component Location - 69
