Lamp-Tail Turn-Left
Component ID: 129

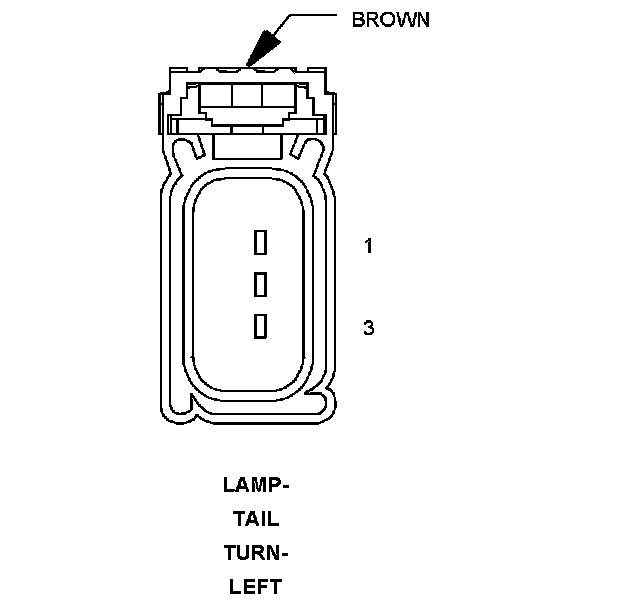

Component : LAMP-TAIL TURN-LEFT
Connector:
Name : LAMP-TAIL TURN-LEFT
Color : BROWN
# of pins : 3
Pin Description Circuit
1 GROUND Z960 18BK/LB
2 - -
3 LEFT REAR TURN SIGNAL L63 20DG/RD
Component Location - 60
Component ID: 129
Component : LAMP-TAIL TURN-LEFT
Connector:
Name : LAMP-TAIL TURN-LEFT
Color : BROWN
# of pins : 3
Pin Description Circuit
1 GROUND Z960 18BK/LB
2 - -
3 LEFT REAR TURN SIGNAL L63 20DG/RD
Component Location - 60
