Lamp-Park/Turn-Right Front

Component ID: 126

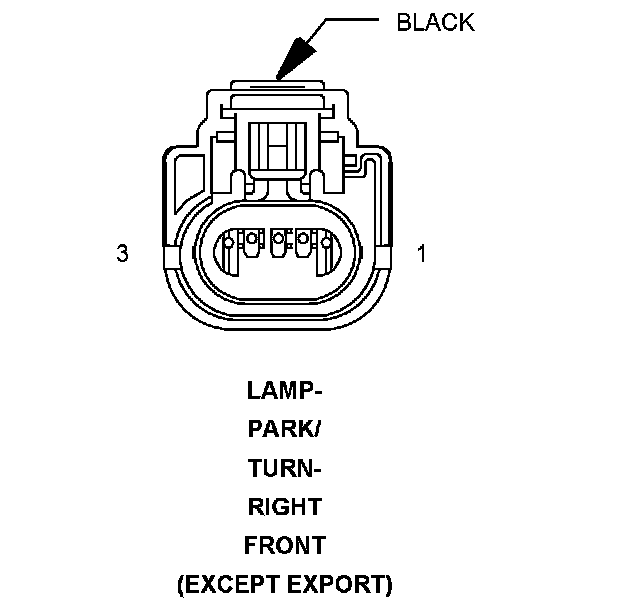

Component : LAMP-PARK/TURN-RIGHT FRONT

Connector:
Name : LAMP-PARK/TURN-RIGHT FRONT
Color : BLACK
# of pins : 3
Qualifier : (EXCEPT EXPORT)




Pin Description Circuit
1 GROUND Z908 20BK/PK
2 HEADLAMP SWITCH OUTPUT L70 20WT/GY
3 RIGHT TURN SIGNAL L60 20WT/TN

Component Location - 1
