Lamp-Park/Turn-Left Front

Component ID: 125
Component : LAMP-PARK/TURN-LEFT FRONT

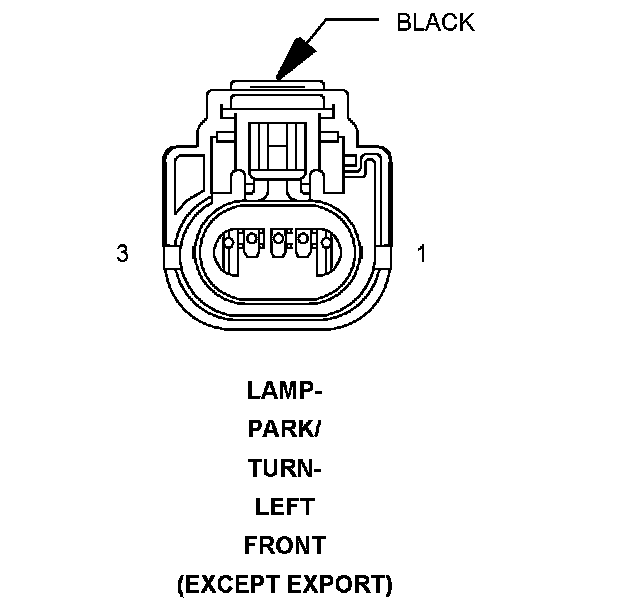

Connector:
Name : LAMP-PARK/TURN-LEFT FRONT
Color : BLACK
# of pins : 3
Qualifier : (EXCEPT EXPORT)




Pin Description Circuit
1 GROUND Z904 20BK/LG
2 HEADLAMP SWITCH OUTPUT L7 20WT/VT
3 LEFT TURN SIGNAL L61 20WT/RD

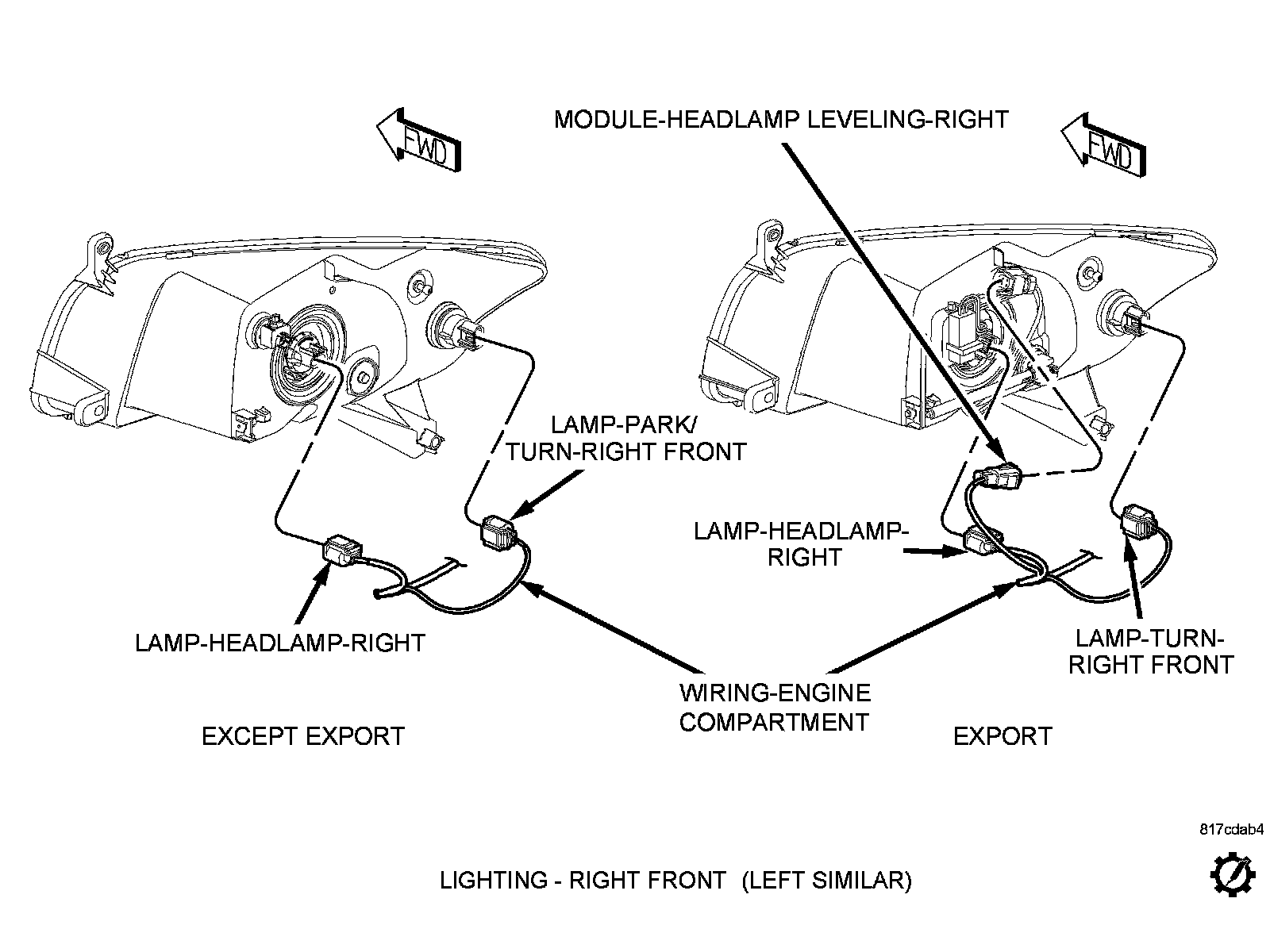

Component Location - 1
