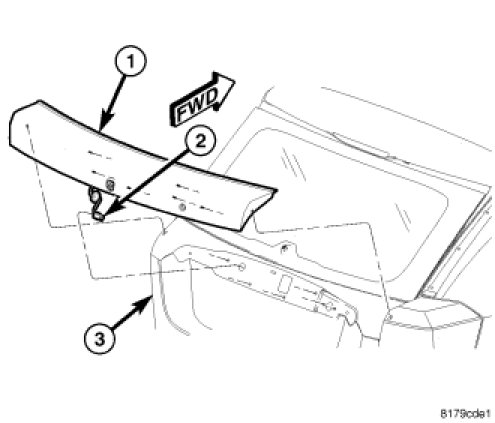

REMOVAL
1.
Remove liftgate upper molding.
2.
Remove liftgate upper side molding.
3.
Remove liftgate lower molding.
4.
Remove nuts from light bar studs.
5.
Disconnect wire connector.
6.
Disconnect cable from handle.
