License Plate Lamp: Locations

Component ID: 124

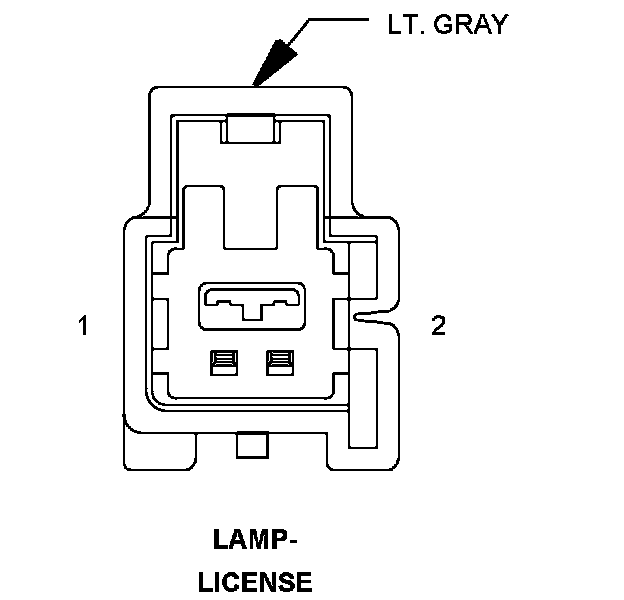

Component : LAMP-LICENSE

Connector:
Name : LAMP-LICENSE
Color : LT. GRAY
# of pins : 2




Pin Description Circuit
1 GROUND Z960 18BK/LB
2 PARK LAMP CONTROL OUTPUT L217 20WT/VT

Component Location - 67
