Lamp-Headlamp-Right

Component ID: 122
Component : LAMP-HEADLAMP-RIGHT

Connector:
Name : LAMP-HEADLAMP-RIGHT
Color : DK. GREEN
# of pins : 3

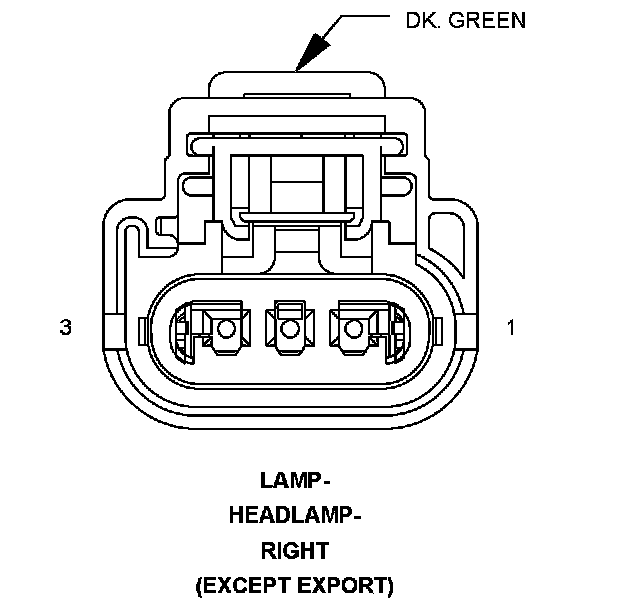

Qualifier : (EXCEPT EXPORT)




Pin Description Circuit
1 RIGHT LOW BEAM OUTPUT L44 20VT/RD
2 GROUND Z908 20BK/PK
3 RIGHT HIGH BEAM OUTPUT L34 20WT/GY

Component Location - 1




Component Location - 2






Connector:
Name : LAMP-HEADLAMP-RIGHT
Color :
# of pins : 3

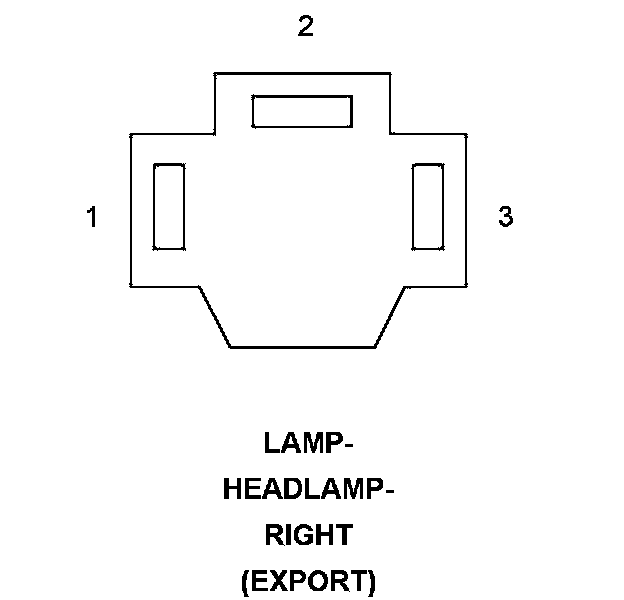

Qualifier : (EXPORT)




Pin Description Circuit
1 RIGHT LOW BEAM OUTPUT L44 20VT/RD
2 GROUND Z908 20BK/PK
3 RIGHT HIGH BEAM OUTPUT L34 20WT/GY

Component Location - 1




Component Location - 2
