Installation

UNIT





CAUTION: Do not touch the glass of halogen bulbs with fingers or other possibly oily surface, reduced bulb life will result.

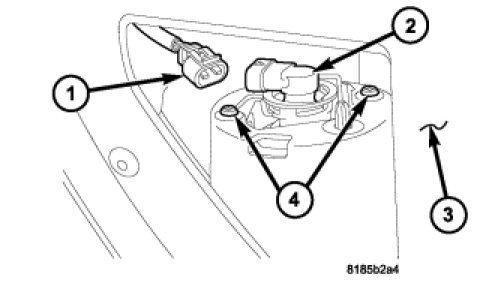

1. Place fog lamp into fascia opening and push rearward to position into fascia.

2. Reach up through the lower fascia (3) cutout.

3. Install two screws attaching fog lamp to fascia (4).

NOTE: It may be necessary to install the fog lamp bulb (2) if it was removed to access the fog lamp unit.

4. Connect electrical connector to fog lamp (1).

5. Connect the battery negative cable.
