Courtesy Lamp: Locations

Component ID: 117

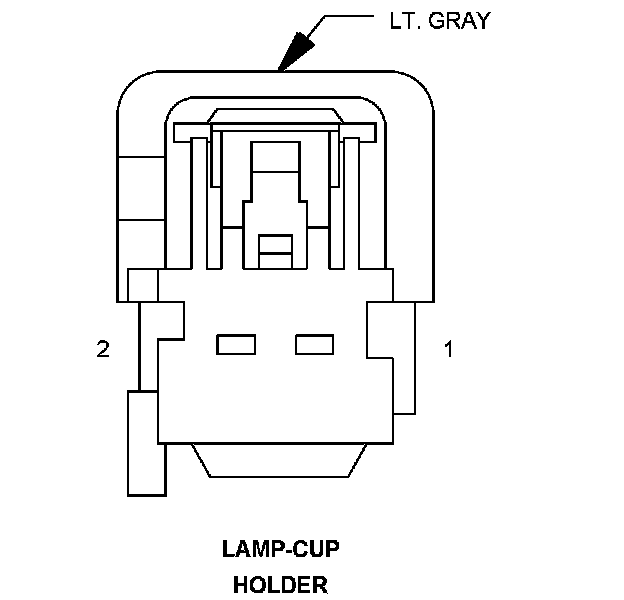

Component : LAMP-CUP HOLDER

Connector:
Name : LAMP-CUP HOLDER
Color : LT. GRAY
# of pins : 2




Pin Description Circuit
1 PANEL LAMPS DRIVER E12 20OR/GY
2 GROUND Z937 20BK

Component Location - 40
