Instrument Panel Cluster Bezel - Installation

INSTALLATION

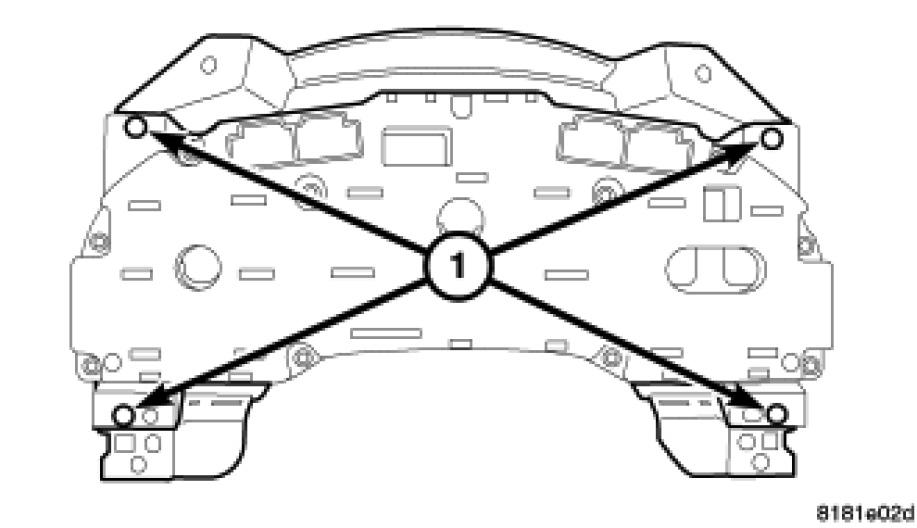

1. Install cluster to bezel by installing four fasteners (1).

2. Position cluster into instrument panel opening.

3. Connect wire connectors.

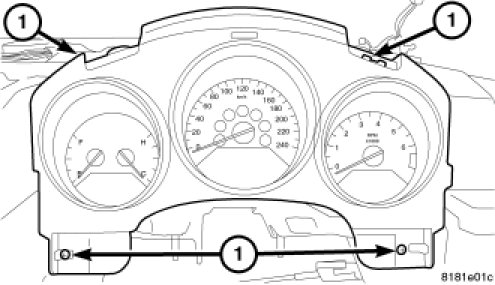

4. Install four fasteners (1) fastening cluster to instrument panel.

5. Install instrument panel top pad.
