Instrument Cluster

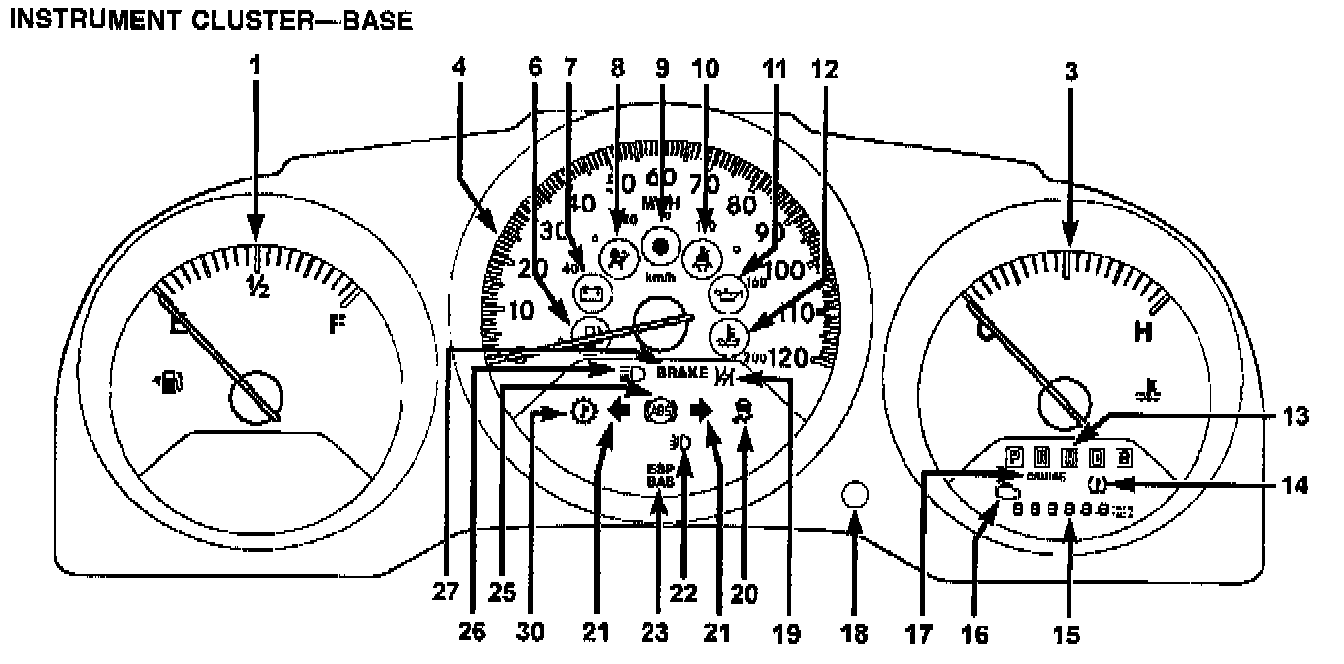

INSTRUMENT CLUSTER - BASE:

INSTRUMENT CLUSTER - PREMIUM:

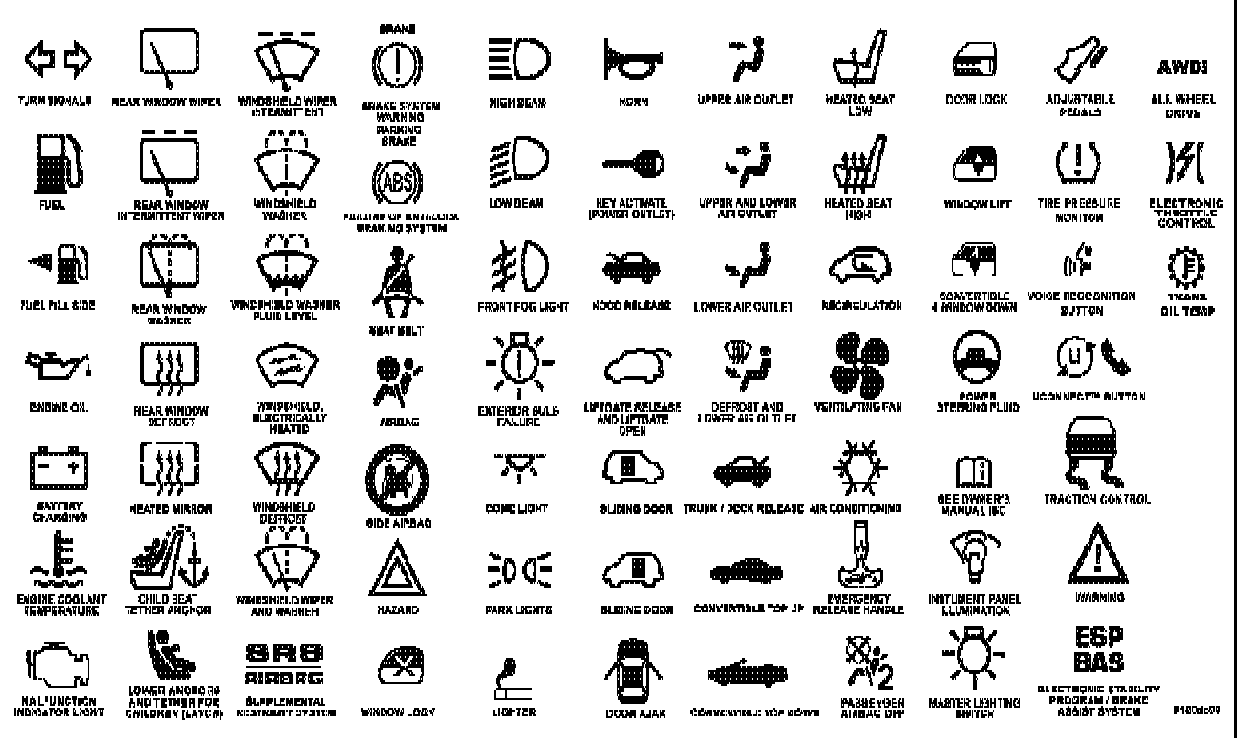

SYMBOL:

1.FUEL GAUGE
2.FUEL DOOR REMINDER
3.TEMPERATURE GAUGE
4.SPEEDOMETER
5.TACHOMETER
6.LOW FUEL LIGHT
7.CHARGING SYSTEM LIGHT
8.AIRBAG LIGHT
9.THEFT ALARM LIGHT
10.SEAT BELT REMINDER LIGHT
11.OIL PRESSURE LIGHT
12.ENGINE TEMPERATURE WARNING LIGHT
13.TRANSMISSION RANGE INDICATOR
14.TIRE PRESSURE MONITOR LIGHT
15.ODOMETER / TRIP ODOMETER
16.MALFUNCTION INDICATOR LIGHT
17.CRUISE INDICATOR
18.ODOMETER / TRIP ODOMETER RESET KNOB
19.ELECTRONIC THROTTLE CONTROL INDICATOR LIGHT
20.ELECTRONIC STABILITY PROGRAM (ESP) INDICATOR
LIGHT / TRACTION CONTROL SYSTEM (TCS)
INDICATOR LIGHT - IF EQUIPPED
21.TURN SIGNAL INDICATORS
22.FRONT FOG LIGHT INDICATOR - IF EQUIPPED
23.ELECTRONIC STABILITY PROGRAM (ESP) INDICATOR
LIGHT
24.ALL - WHEEL - DRIVE FAILURE INDICATOR LIGHT
25.ANTI - LOCK WARNING LIGHT (ABS) - IF EQUIPPED
26.HIGH BEAM INDICATOR
27.BRAKE SYSTEM WARNING LIGHT
28.ELECTRONIC VEHICLE INFORMATION (EVIC)
BUTTON - IF EQUIPPED
29.ELECTRONIC VEHICLE INFORMATION CENTER
DISPLAY - IF EQUIPPED
30.TRANSMISSION OVER TEMP LIGHT
31.REAR FOG LIGHT INDICATOR
32.GLOW PLUG LIGHT - DIESEL ENGINES ONLY
OW PLUG LIGHT - DIESEL ENGINES ONLY
