Compressor Clutch: Diagrams

Component ID: 324
Component : SOLENOID-A/C COMPRESSOR

Connector:

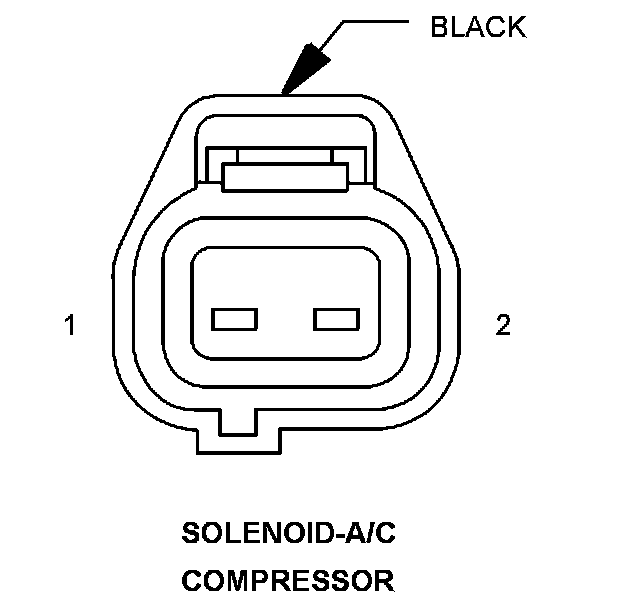

Name : SOLENOID-A/C COMPRESSOR
Color : BLACK
# of pins : 2




Pin Description Circuit
1 FUSED MAIN RELAY OUTPUT F343 20BR/YL
Pin Description Circuit
1 A/C COMPRESSOR CONTROL C27 20LB/WT
2 A/C COMPRESSOR CONTROL C27 20LB/WT
2 GROUND Z916 20BK

Component Location - 14




Component Location - 18
