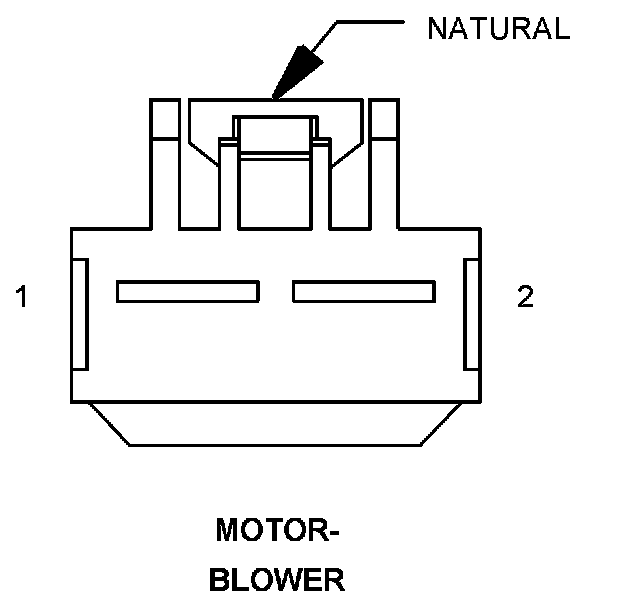

Connector Views

Component ID: 167
Component : MOTOR-BLOWER

Connector:
Name : MOTOR-BLOWER
Color : NATURAL
# of pins : 2




Pin Description Circuit
1 BLOWER MOTOR HIGH SPEED C70 12DB/YL
2 BLOWER MOTOR CONTROL C7 12DB/PK

Component Location - 25

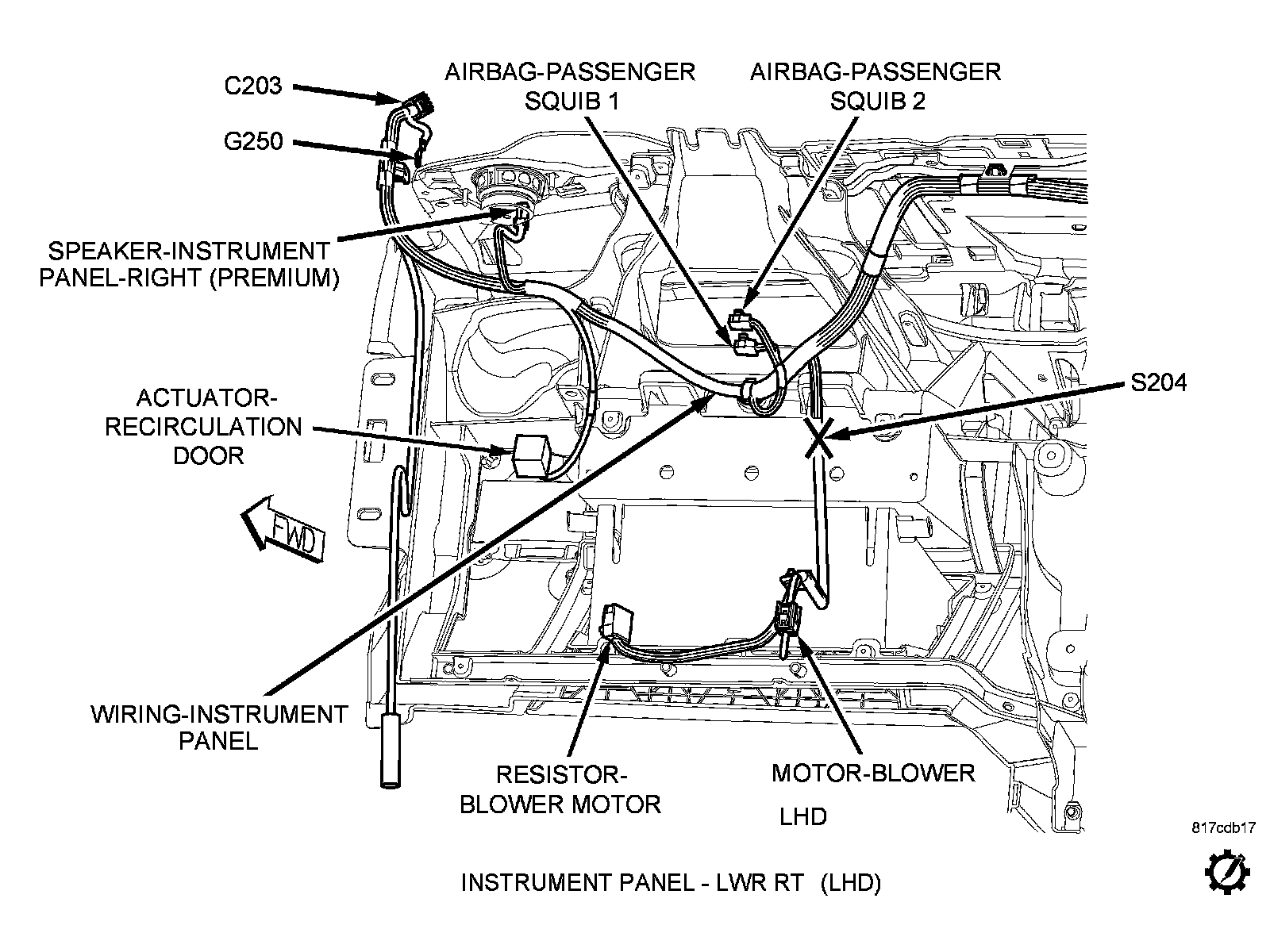

Component Location - 27




Component Location - 31




Component Location - 33

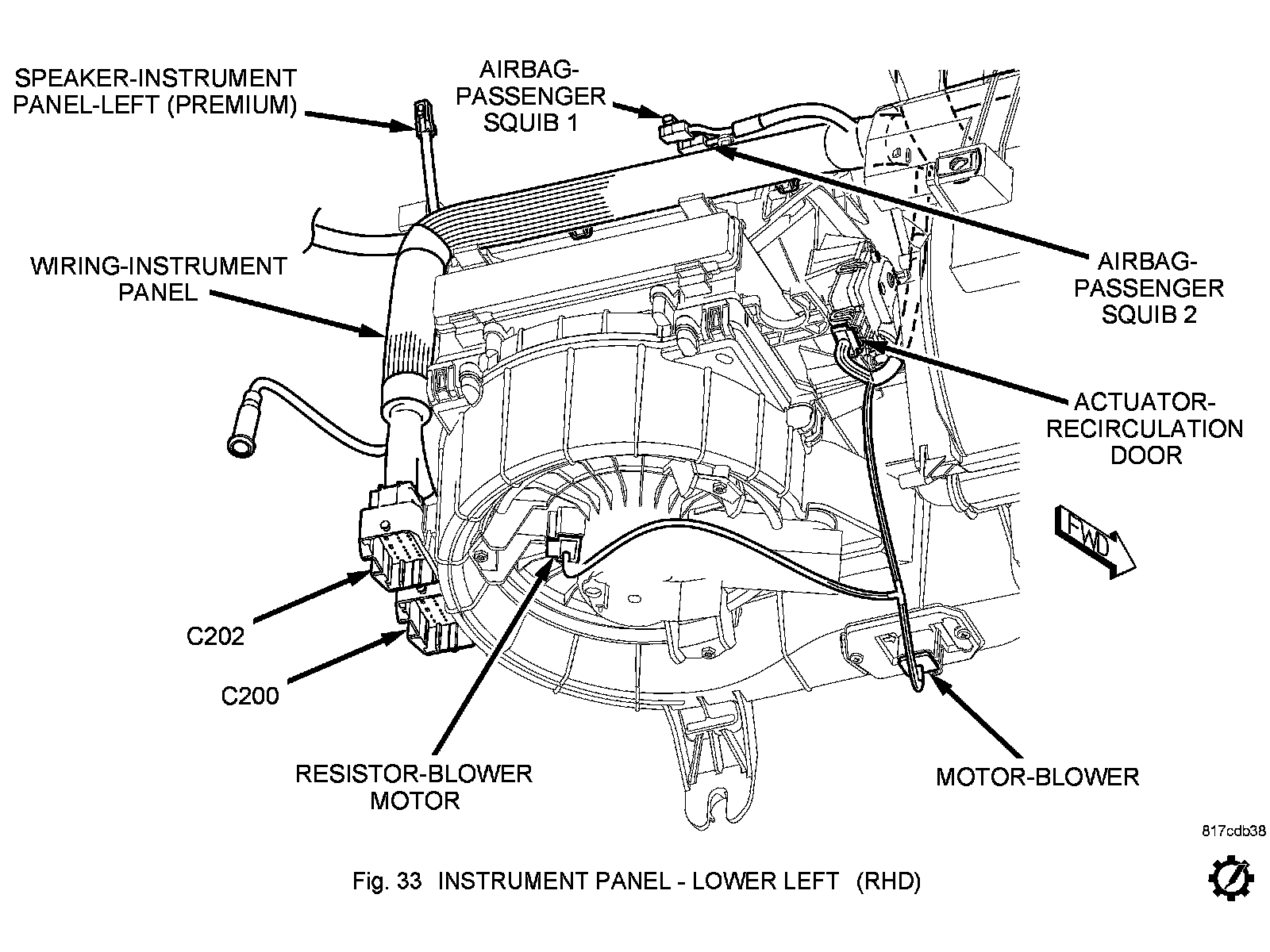

Fig. 33:
