Installation

INSTRUMENT PANEL

NOTE: Driver side air outlet shown. Passenger side outlet similar.

NOTE: LHD model shown. RHD model similar.

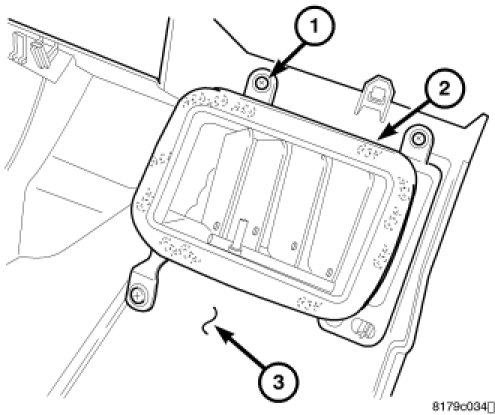

1. Position the air outlet (2) onto the bezel (3).

2. Install the four screws (1) that secure the air outlet to the bezel. Tighten the screws to 2 Nm (17 in. lbs.).

3. Depending on the outlet being serviced, install the instrument cluster bezel or the passenger side IP bezel.
