Installation

GAS ENGINE

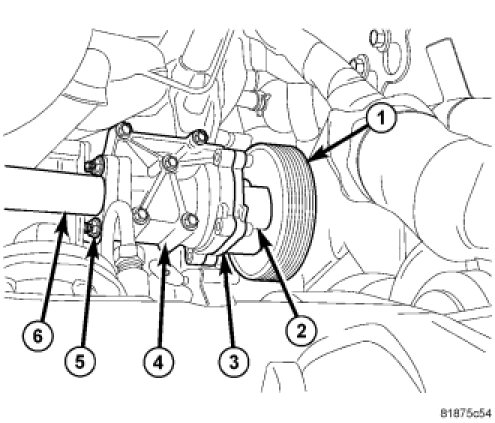

1. Position water pump assembly (3) into water pump housing (4).
2. Install mounting bolts (2). Tighten bolts to 24 Nm (212 in. lbs.).
3. Install water pump pulley (1). Tighten bolts to 9 Nm (79 in lbs.).
4. Install drive belt splash shield.
5. Lower vehicle.
6. Install accessory drive belt.
7. Connect battery negative terminal.
8. Fill cooling system (Refer to COOLING - STANDARD PROCEDURE - FILLING COOLING SYSTEM).
