Home >> Dodge >> 2007 >> Caliber L4-2.0L VIN B >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Timing Components >> Timing Chain Tensioner >> Service and Repair >> Removal

Removal






REMOVAL




1. Remove timing chain.

NOTE: Tensioner will not come apart during removal.

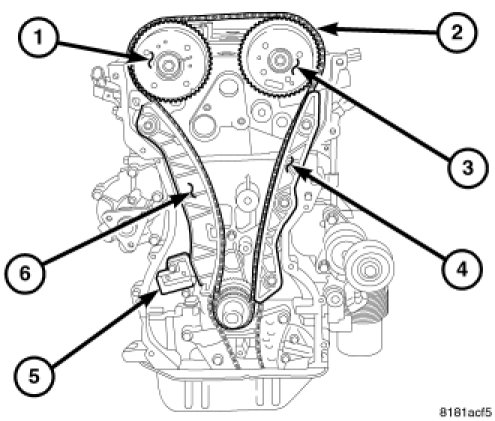

2. Remove timing chain tensioner retaining bolts and remove tensioner.
