Timing Components: Service and Repair

VALVE TIMING VERIFICATION




1. Remove engine cover.
2. Remove cylinder head cover.

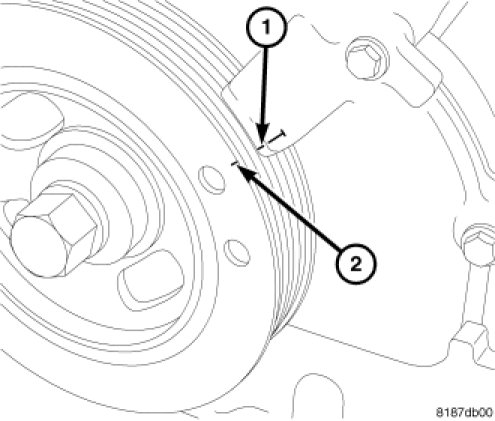

3. Set engine to TDC (1, 2).




4. The mark on the camshaft sprocket should be in line with the cylinder head cover sealing surface (2).
5. Verify that the painted or colored chain links (1, 3) aligns with marks on camshaft sprockets.
6. Verify that the painted or colored chain link aligns with mark on crankshaft sprocket.
7. Install cylinder head cover.
