Vibration Damper - Installation






INSTALLATION

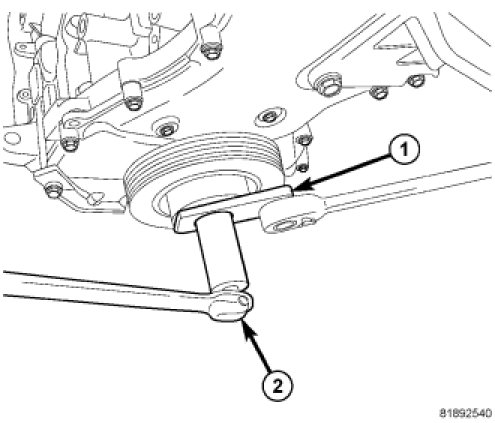

1. Install crankshaft damper.
2. Apply clean engine oil crankshaft damper bolt threads and between bolt head and washer. Tighten bolt to 210 Nm (155 ft. lbs.).
3. Install accessory drive belts.
