Gas - Primary Thermostat

GAS - PRIMARY THERMOSTAT




1. Partially drain cooling system.
2. Remove air filter housing.

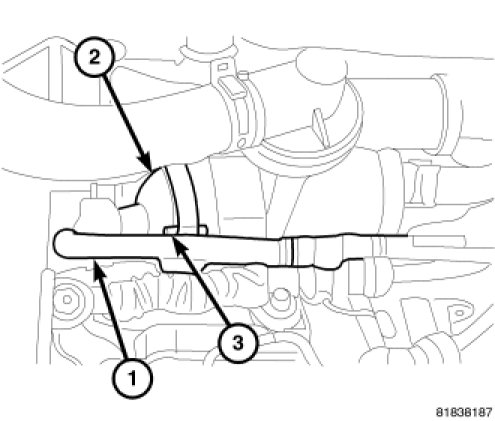

3. Disconnect coolant hose (1) from inlet housing (2).
4. Remove inlet housing bolts (3).
5. Remove thermostat assembly, and clean sealing surfaces.
