Trailer Connector

Component ID: 49

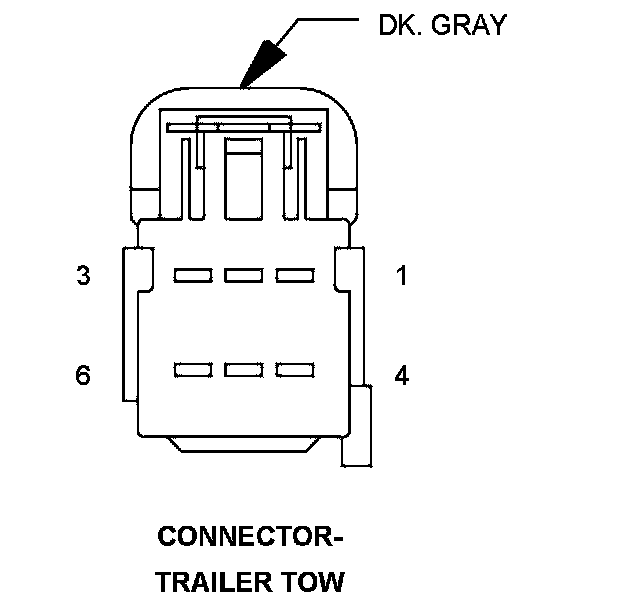

Component : CONNECTOR-TRAILER TOW

Connector:
Name : CONNECTOR-TRAILER TOW
Color : DK. GRAY
# of pins : 6




Pin Description Circuit
1 - -
2 FUSED B(+) A100 18RD/VT
3 - -
4 - -
5 - -
6 - -

Component Location - 60
